Intel-Based Server JBOD Enclosures

(Select a Server, then click Get Quote)
Model Size CPU Qty CPU Max Memory # of Drives Drive Type Network Redundant Power
iX-2012J2UN/AN/AN/A12SATA/SAS

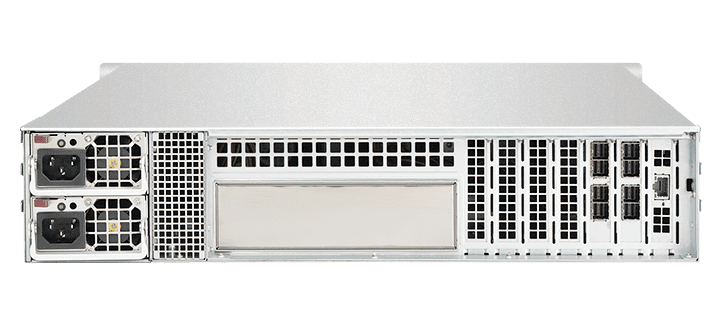

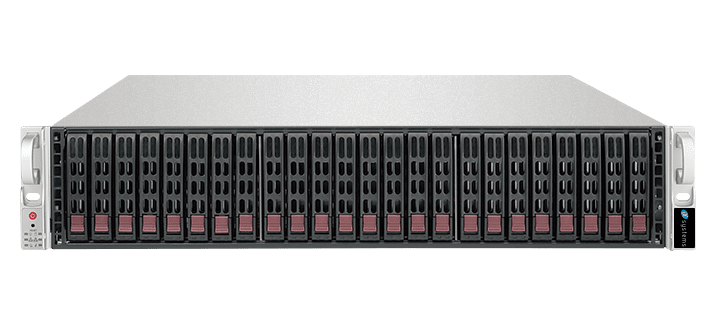

iX-2024J2UN/AN/AN/A24SATA/SAS

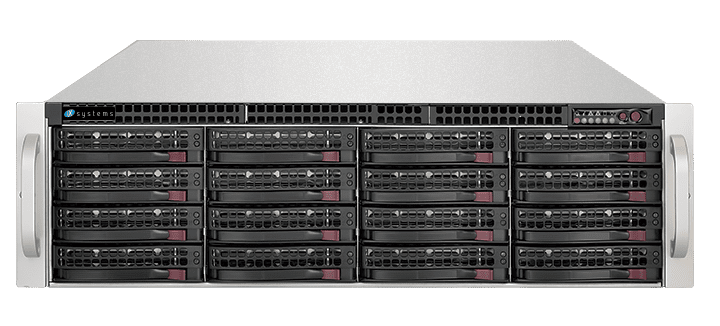

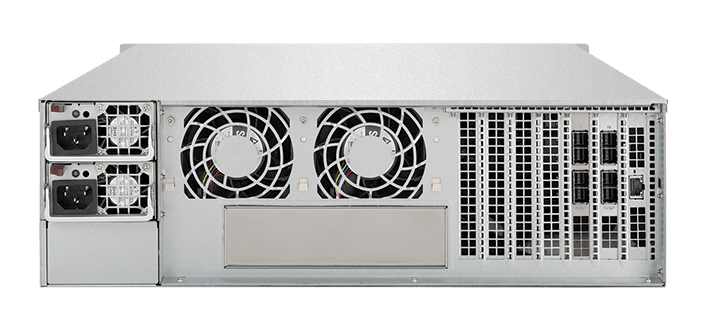

iX-3016J3UN/AN/AN/A16SATA/SAS

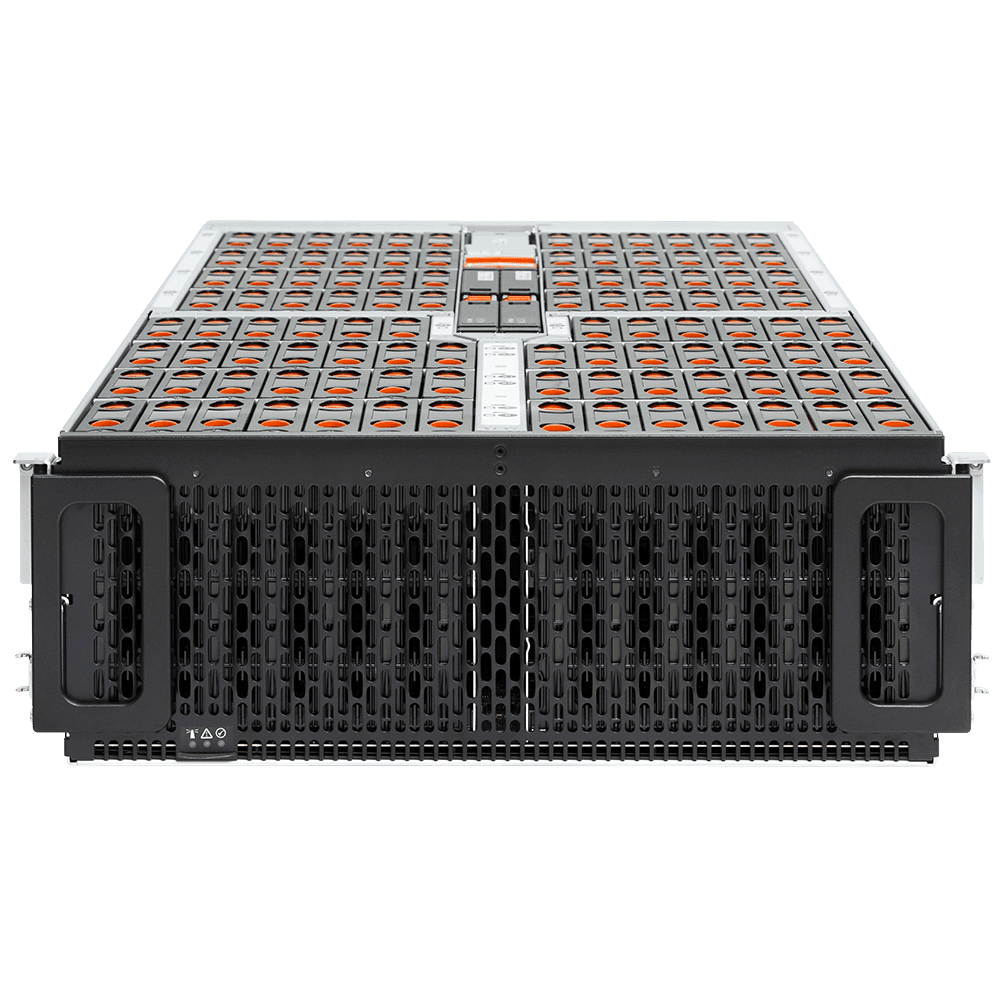

iX-40102ES4UN/AN/AN/A102SATA/SAS

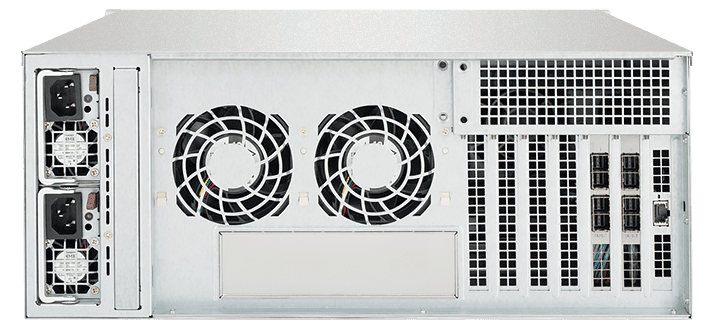

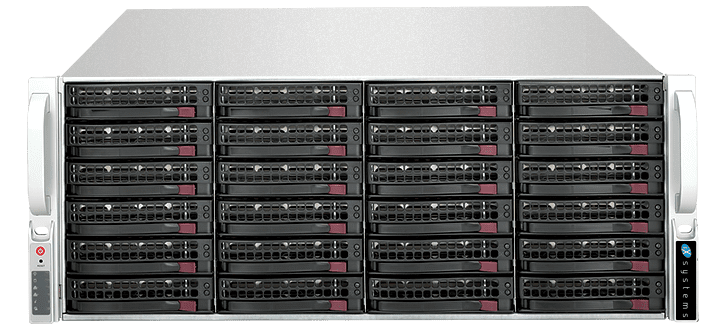

iX-4024J4UN/AN/AN/A24SATA/SAS

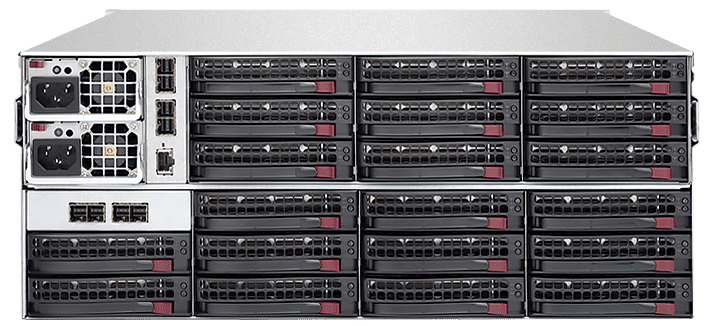

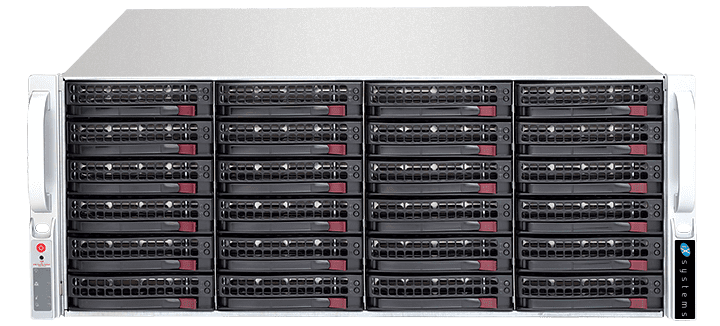

iX-4044J4UN/AN/AN/A44SATA/SAS

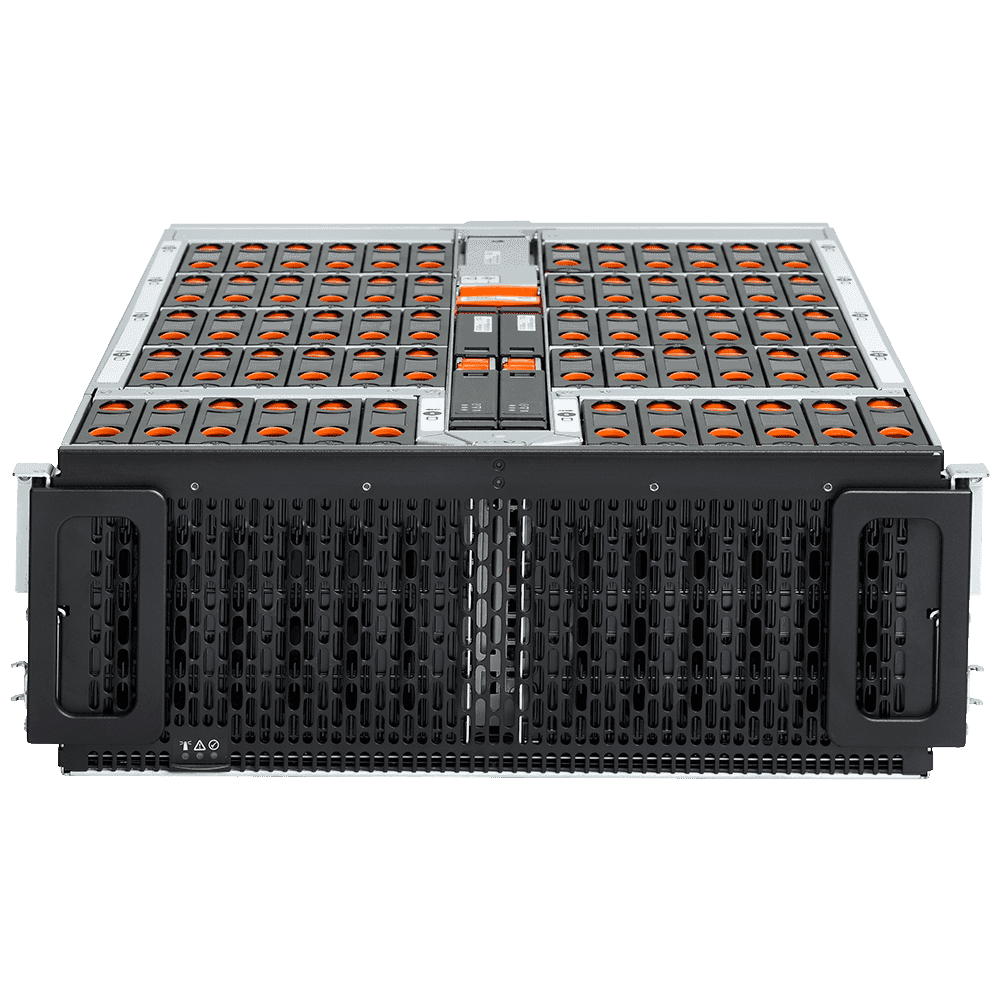

iX-4060ES4UN/AN/AN/A60SATA/SAS

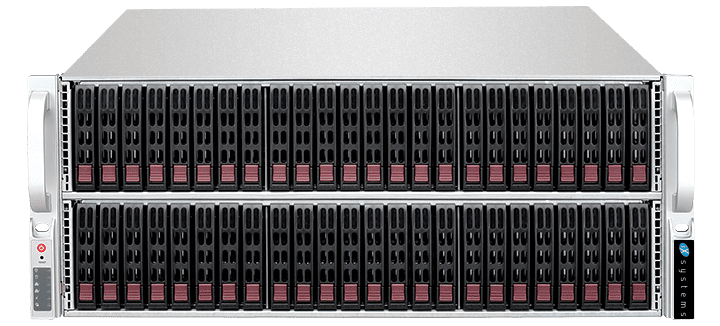

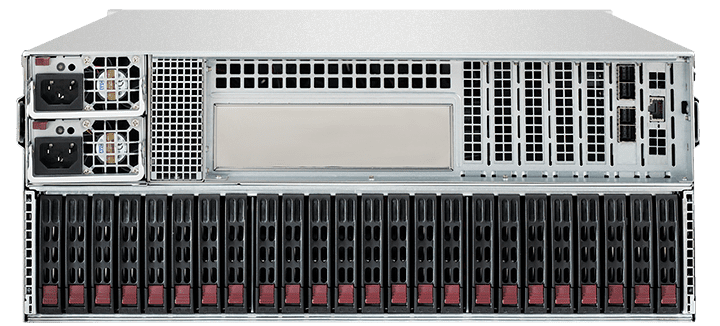

iX-4072J4UN/AN/AN/A72SATA/SAS

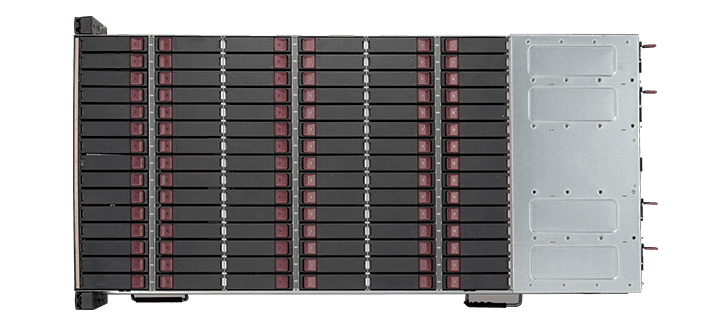

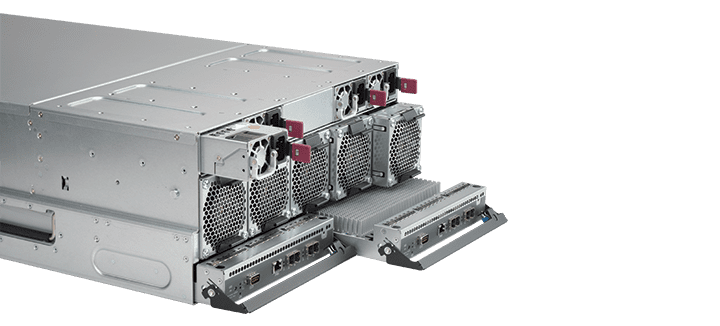

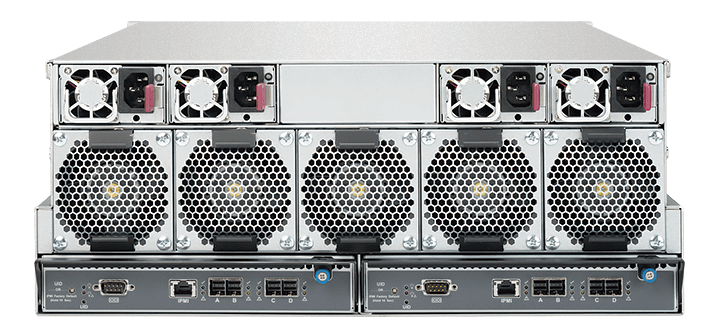

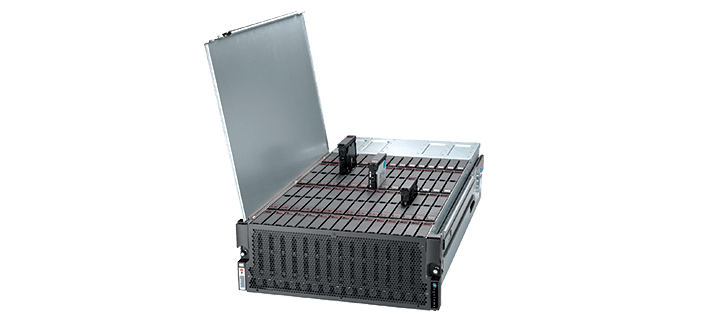

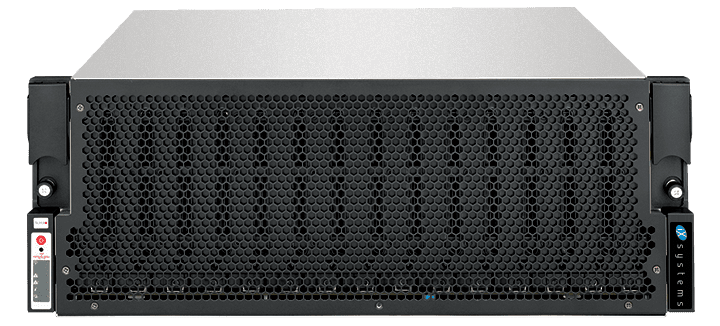

iX-4090JTL4UN/AN/AN/A90SATA/SAS

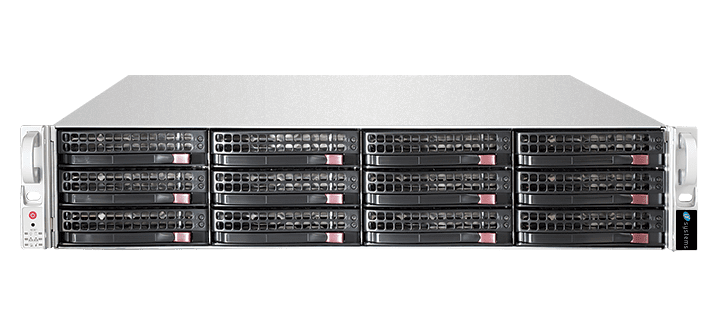

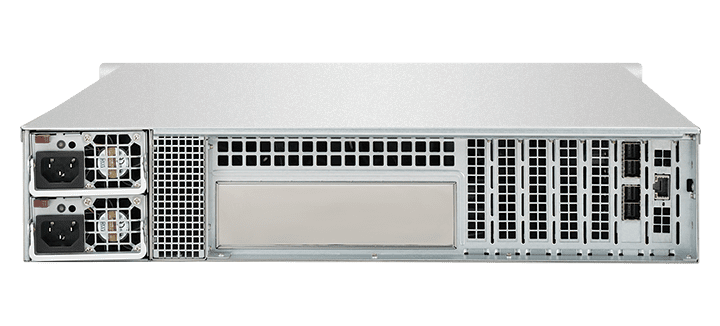

iX-2012J

  • Specs
  • Description
  • Get Quote
Motherboard
Processor Support
System Memory (Max.)*
Chipset
Networking
Networking Options
Remote Management
VGA/Audio
Chassis
Form Factor 2U JBOD storage chassis
Dimensions 437 x 89 x 647mm (17.2” x 3.5” x 25.5”)
Cooling System
Mounting Rails
Storage
Onboard Storage Controller
Hard Drive Bays 12 x 3.5" hot-swappable HDDs bays
Solid State Storage
Peripheral Bays
Backplane 12-port 2U SAS3 12Gbps single or dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Connectivity 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination
SAS Controller Options
Host Server RAID Controller or HBA Options Broadcom/LSI 9300-8e SAS 12Gb/s PCI-E 3.0 8-Port Host Bus Adapter
Broadcom/LSI 9300-4i4e SAS 12Gb/s PCI-E 3.0 4-Internal / 4-External Port Host Bus Adapter
Broadcom/LSI 9380-8e RAID SAS 12Gb/s PCI-E 3.0 8-Port Controller with 1GB Cache (Optional Cachevault Flash Module)
SAS Cables 1m or 3m External 12Gb/s SAS Cable - SFF-8644 to SFF-8088
1m or 3m External 12Gb/s SAS Cable - SFF-8644 to SFF-8644
Onboard RAID
RAID Controller Options
RAID Support
Expandability
Expansion Slot
Multiple I/O
USB Ports
IDE
Serial Ports
PS/2 Keyboard
PS/2 Mouse
VGA
Front Panel
Power Button
System Reset Button
Power LED
Hard Drive Activity LED
Network Activity LEDs
System Overheat LED
Power Fail LED
Front Ports
Power
Power Supply 740W (1+1) 95% efficient Platinum level power supplies

Key Applications

  • General Server Shared Storage
  • Software Defined Storage
  • Cloud Backup
  • Data Replication

Outstanding Features

  • Cost Effective Storage Expansion with 12 x 3.5" bays
  • SAS3 12Gb/s Single or Dual Expander backplane
  • Remote Management (IPMI) Power/Monitoring
  • Support NTP for time synchronization & RTC battery backup
