2U 4-Node Dual Intel Xeon Scalable Processors
Use Cases
- Compute Intensive Application
- Data Center
- Enterprise Server
- Financial Analysis
- HPC
- Mission-Critical
Highlights
- 16 DIMM Slots – Up to 4TB Memory per Node
- 6 x 2.5” Hot-swap SATA/SAS/NVMe drive bays Per Node
- Intel® X710 Dual port 10GBase-T LAN onboard Per Node
- 2 Low-profile PCI-E 4.0 slots
Specs
| Motherboard | |
|---|---|
| Processor Support | Each node (1 of 4): Dual Intel® Xeon® LGA 4189 Scalable Gen. 3 Processors (Ice Lake) with 3 x UPI Links Up to 11.2GT/s |
| Chipset | Intel® C621A Chipset |
| System Memory (Max.)* | Each node (1 of 4): 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM 16 DIMM slots |
| Networking | Dual 10GbE BaseT with Intel® X710 |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | Each node (1 of 4): Aspeed AST2600 BMC |
| Remote Management | Each node (1 of 4): IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions (mm) | 440 x 87.5 x 840 |
| Storage | |
|---|---|
| Onboard Storage Controller | Each node (1 of 4): Broadcom LSI SAS 3008 12Gb/s HBA (iX-22X424I) |
| RAID Controller Options | Optional SAS RAID Available |
| Drive Bays | Each node (1 of 4): 6 x 2.5” Hot-swap SATA3/SAS3/NVMe drive bays |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | Each node (1 of 4): 2 PCI-E 4.0 x16 LP 1 PCI-E 3.0 x16 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 2200W Redundant high-efficiency power supplies with I2C & PMBus |

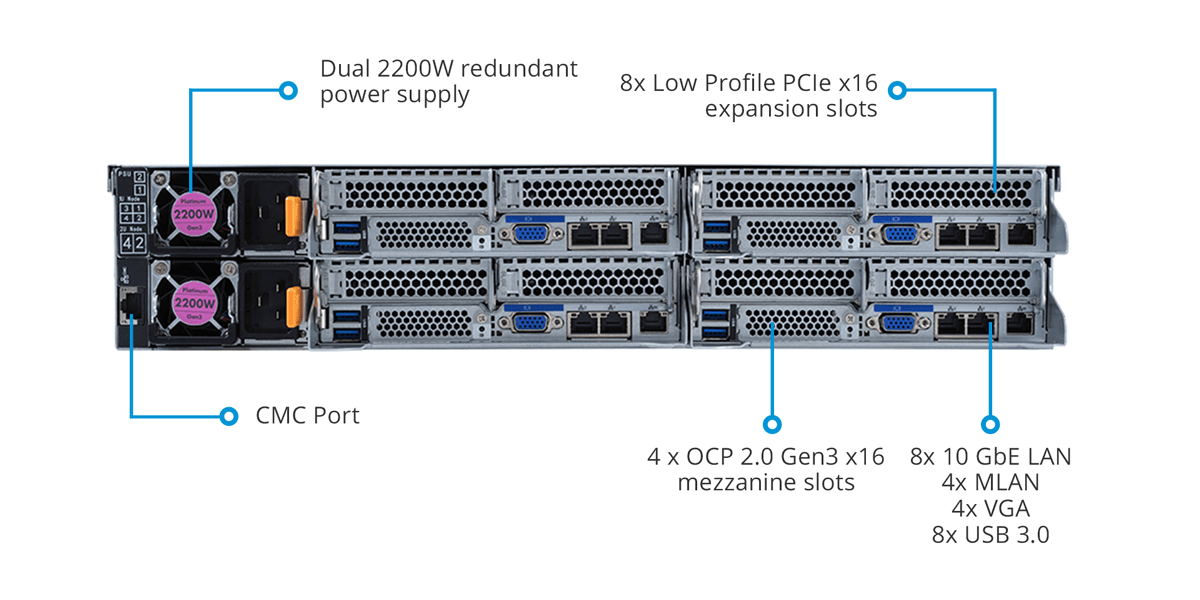

I/O Layout
