AX-2112G

2U Single AMD EPYC Processor

Use Cases

  • Virtualization
  • Hyperconverge Storage
  • Cloud Computing
  • High End Enterprise Server
  • DB Processing & Storage

Highlights

  • 16 DIMM Slots – Up to 4TB total memory
  • 12 x 3.5” Hot-Swap NVMe/SATA/SAS drive bays (8 x SATA/SAS + 4 x Gen4 NVMe)
  • 8 x PCI-E 4.0 slots
  • Supports 2 x Double Wide GPU’s

Specs

Motherboard
Processor SupportSingle AMD EPYC™ 7003/7002 (Milan/Rome) Series Processor
ChipsetAMD 2nd Gen EPYC™ System on Chip (SoC)
System Memory (Max.)*Up to 4TB Registered ECC DDR4 3200MHz SDRAM; 16 DIMM slots
NetworkingDual 1GbE i350-AM2
Networking OptionsOptional 10GbE, 25GbE, 40GbE, 100GbE Ports Available
VGA/AudioASPEED AST2500 BMC
Remote ManagementRedfish API, IPMI 2.0; KVM with dedicated LAN
Chassis
Form Factor2U Rackmount
Dimensions (mm)438 x 87.5 x 730
Storage
Onboard Storage ControllerSATA3 (6 Gbps) controller - SAS3 or NVMe (Optional)
RAID Controller OptionsOptional Hardware RAID or SAS HBA Available
Drive Bays12 x 3.5" Hot-swap SATA3 by default or 8 x SATA3 + NVMe (optional) or 12 x SAS3 (optional) drive bays
Peripheral BaysN/A
Expandability
Expansion Slots8 PCI-E 4.0 LP FHFL
1 PCI-E 3.0 OCP
1 PCI-E 2.0 OCP
Power
Power Supply2 x 1200W Redundant high-efficiency power supplies with I2C & PMBus

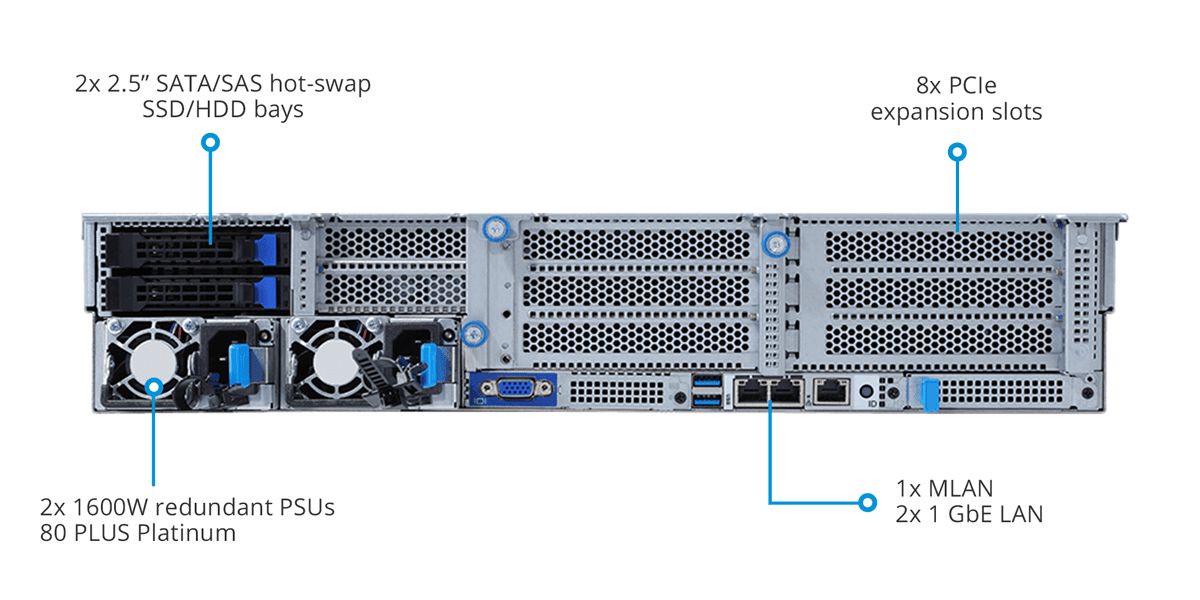

I/O Layout

iX-2112AG IO Layout
