AX-2224A (Gen 4) – 2U Dual AMD EPYC Processors
Key Applications
- Virtualization
- Cloud Computing
- AI Inference and Machine Learning
- Enterprise Server
- Data Center Applications
- Hyperconverge Storage
Outstanding Features
- 24 DIMM Slots – Up to 6 TB total memory
- 24 x 2.5” Hot-Swap NVMe/SATA/SAS
- 3 x Dual FHFL GPU Slots
- 2 x PCI-E 5.0 x16 Slots
- 2 x M.2 Slots
Specs
| Motherboard | |
|---|---|
| Processor Support | Dual AMD EPYC™ 9004 (Genoa) Series Processor |
| Chipset | AMD EPYC™ System on Chip (SoC) |
| System Memory (Max.) | Up to 6 TB Registered ECC DDR5 4800MHz SDRAM; 24 DIMM Slots |
| Networking | Dual 10GbE X710-AT2 |
| PCIe Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/BMC | ASPEED ASMB10 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with Dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions(mm) | 840mm x 449mm x 88.1mm |
| Storage | |
|---|---|
| Onboard Storage Controller | SATA (6 Gbps) Controller + NVMe Controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 24 x 2.5” Hot-Swap |
| Expandability | |
|---|---|
| Expansion Slots | 8 x PCI-E 5.0 x16 LP (from PEX89104) 4 x PCI-E 5.0 x16 LP 1 x PCI-E 4.0 x16 LP |
| Power | |
|---|---|
| Power Supply | 2 x 2600W Redundant High-Efficiency Power Supplies with I2C & PMBus |

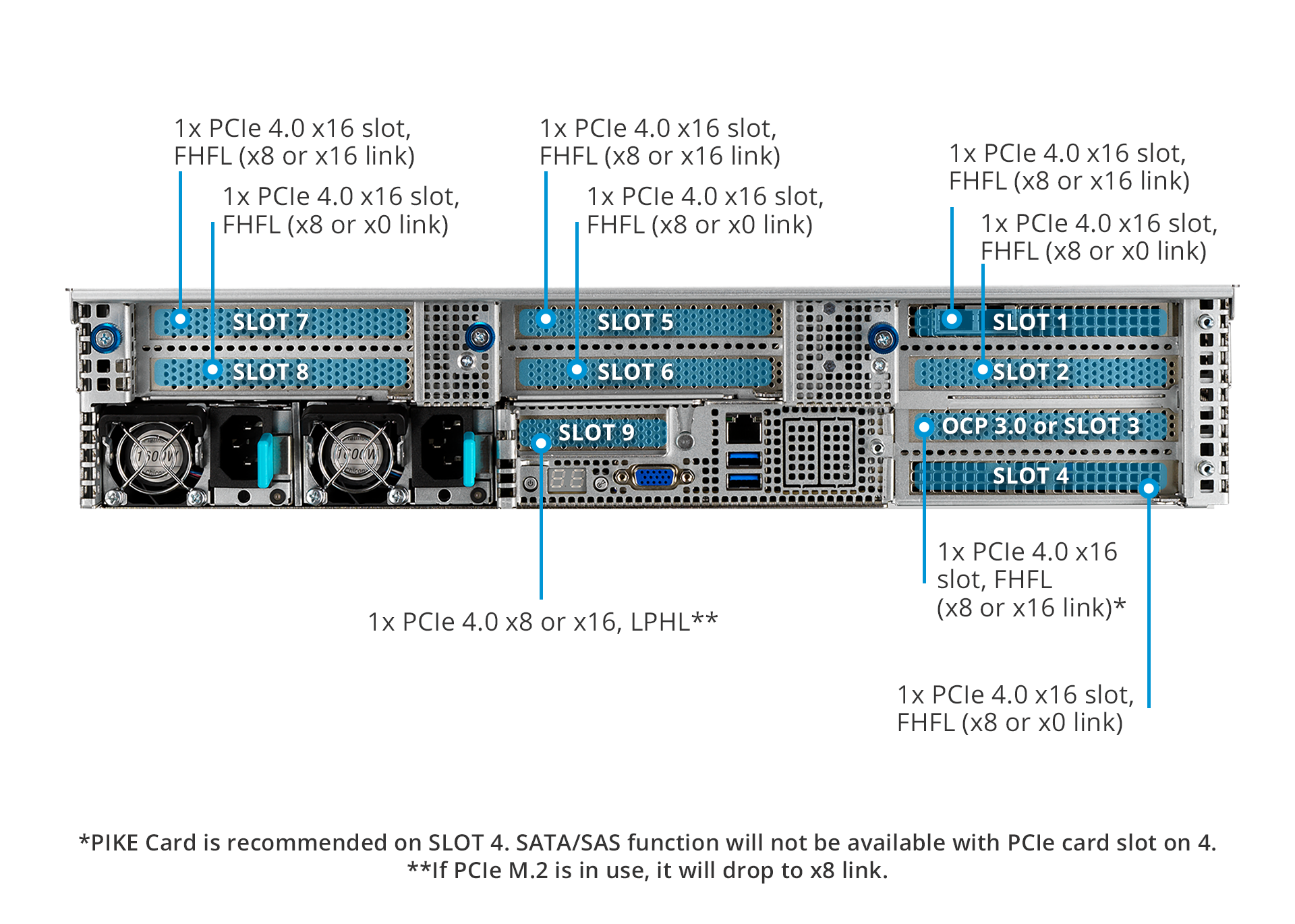

I/O Layout
