1U Dual Intel Xeon Scalable Processors
Use Cases
- Web Server
- FireWall Applications
- Corporate- WINS, DNS, Print, Login
- Gateway, provisioning servers
- Network Appliance
- Cloud Computing
Highlights
- 32 DIMM Slots – Up to 6TB total memory
- 12 x 2.5” Hot-Swap NVMe/SATA/SAS drive bays
- 2 x PCI-E 4.0 slots
- 1 x PCI-E 3.0 x16 OCP
- 2 x M.2 Slots (x4)
Specs
| Motherboard | |
|---|---|
| Processor Support | Dual Intel® Xeon® LGA 4189 Scalable Gen. 3 Processors (Ice Lake) with 3 x UPI Links Up to 11.2GT/s |
| Chipset | Intel® C621A Chipset |
| System Memory (Max.)* | Up to 12TB Registered ECC DDR4 3200MHz SDRAM; 16 DIMM slots |
| Networking | Dual 1GbE i350-AM2 |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | ASPEED ASMB10 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Dimensions (mm) | 842.5mm x 439.5mm x 44mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® SATA (6 Gbps) controller + NVMe controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 12 x 2.5” Hot-Swap NVMe/SATA/SAS drive bays |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 2 PCI-E 4.0 x16 FHFL 1 PCI-E 4.0 x18 LP HHHL 1 PCI-E 3.0 x16 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 1600W Redundant high-efficiency power supplies with I2C & PMBus |

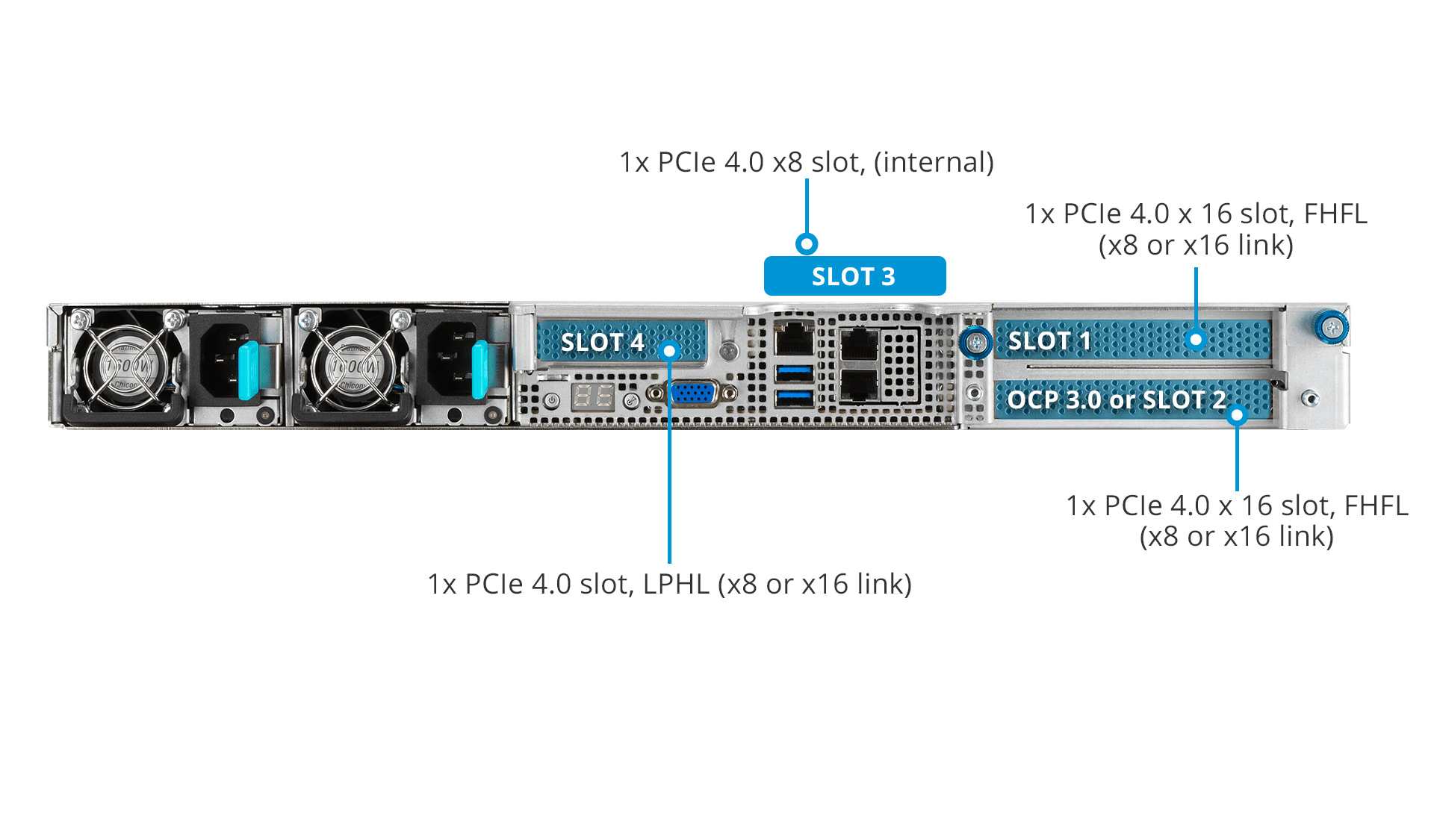

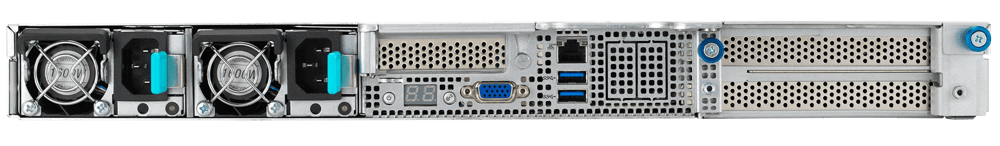

I/O Layout
