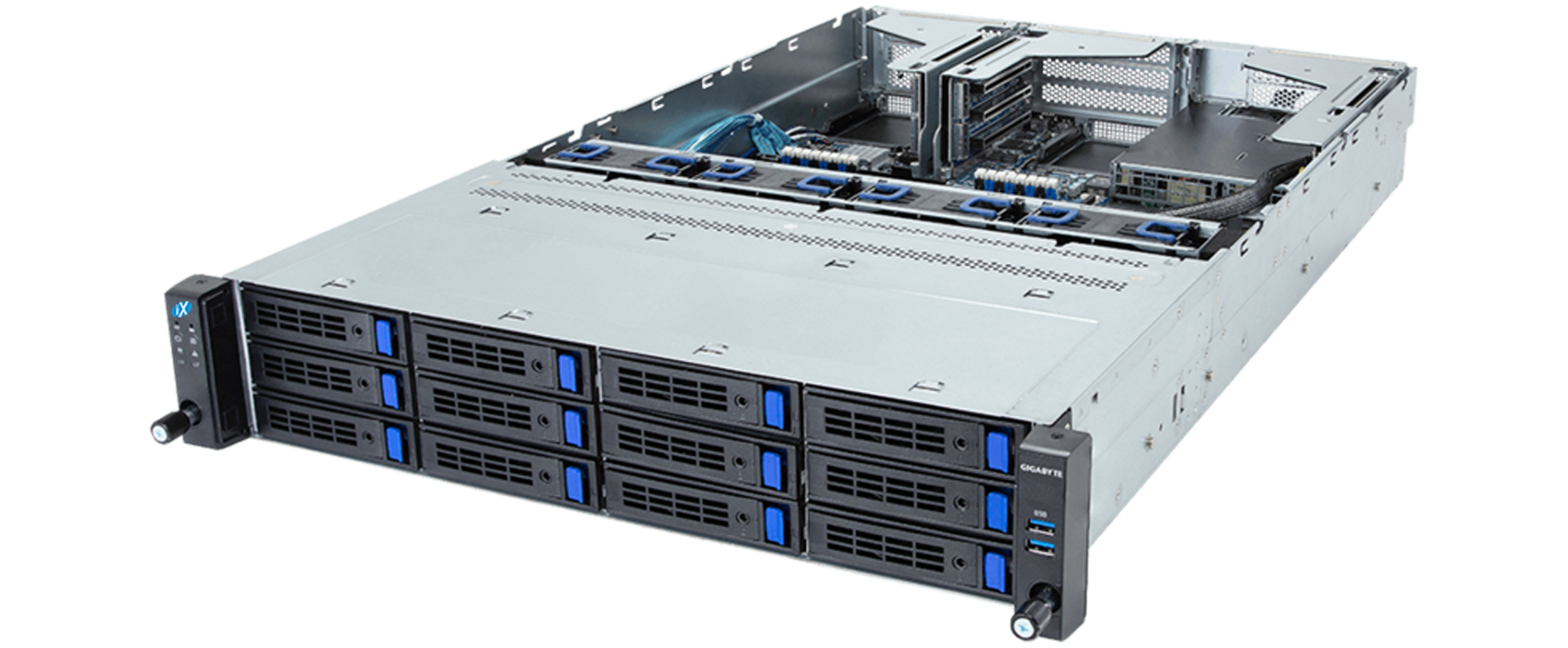

iX-2112G (Gen 4/5) – 2U Single Socket Intel
Key Applications
- Virtualization
- FireWall Applications
- Corporate- WINS, DNS, Print, Login
- Gateway, provisioning servers
- Network Appliance
- Cloud Computing
Outstanding Features
- 16 DIMM Slots – Up to 4TB total memory
- 12 x 3.5″ Hot-Swap SATA/SAS
- 3 x PCI-E 5.0 Dual Slot FHFL GPU Slots
- 2 x PCI-E 5.0 x16 OCP
- 1 x M.2 Slots(x4)
Specs
| Motherboard | |
|---|---|
| Processor Support | Single Intel® Xeon® LGA 4677 Scalable Gen4 Processors (Sapphire Rapids) |
| Chipset | Intel® C741 Chipset |
| System Memory (Max.) | Up to 4 TB Registered ECC DDR5 4800MHz SDRAM; 16 DIMM Slots |
| Networking | Single 1GbE i210-AT |
| PCIe Networking Options | Optional 1/10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/BMC | ASPEED AST2600 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with Dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions(mm) | 710mm x 438mm x 87.5mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® SATA (6 Gbps) Controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 12 x 3.5” Hot-Swap |
| Expandability | |
|---|---|
| Expansion Slots | 3 x PCI-E 5.0 x16 Slots FHFL for Dual-Slot GPU Cards 2 x PCI-E 5.0 x16 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 2700W Redundant High-Efficiency Power Supplies with I2C & PMBus |

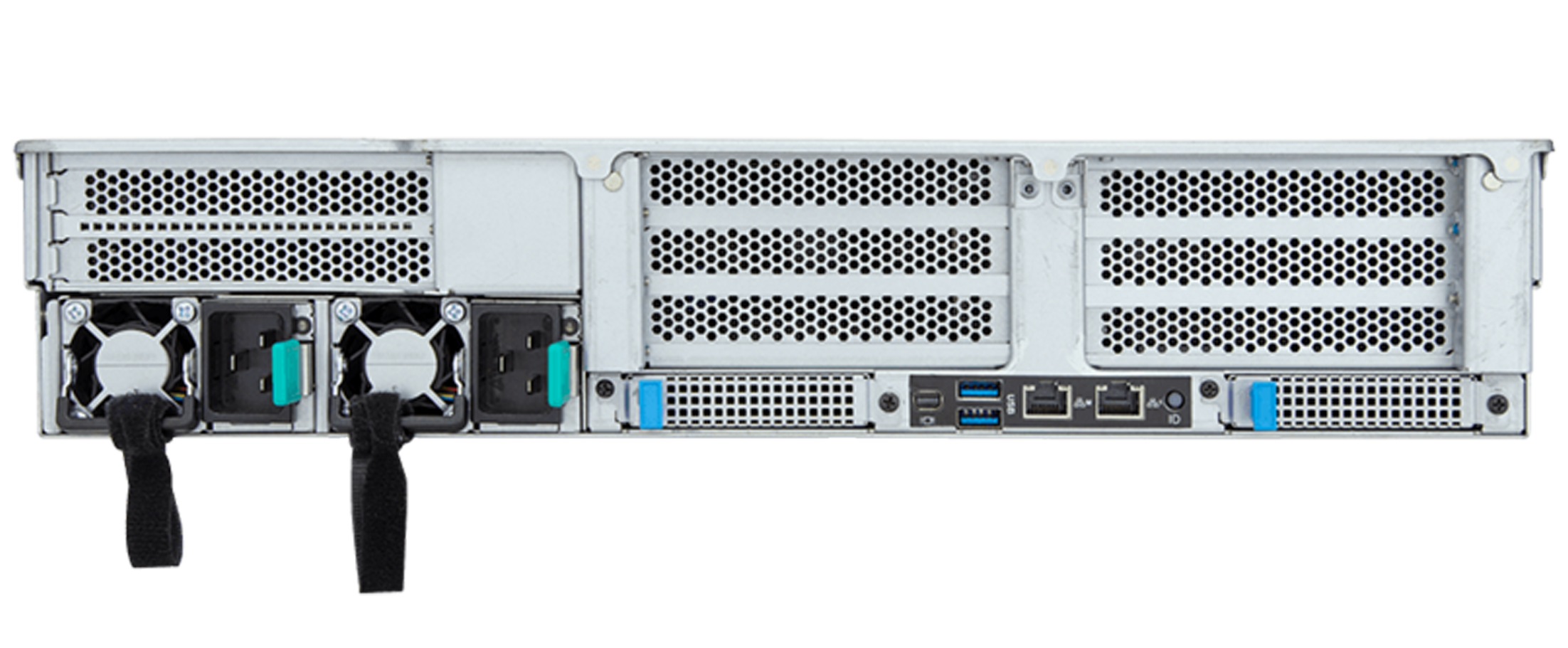

I/O Layout
