AX-1212A (Gen 4)

AX-1212A (Gen 4) – 1U Dual AMD EPYC Processors

Key Applications

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server
  • AI Inference and Machine Learning
  • Data Center Applications
  • Software-defined Storage

Outstanding Features

  • 24 DIMM Slots – Up to 6 TB Total Memory
  • 12 x 2.5” Hot-Swap NVMe/SATA/SAS Drive Bays
  • 2 x PCI-E 5.0 x16 Slots
  • 1 x PCI-E 5.0 x16 OCP
  • 2 x M.2 Slots

Specs

Motherboard
Processor SupportDual AMD EPYC™ 9004 (Genoa) Series Processor
ChipsetAMD EPYC™ System on Chip (SoC)
System Memory (Max.)Up to 6 TB Registered ECC DDR5 4800MHz SDRAM; 24 DIMM Slots
NetworkingDual 10GbE X710-AT2
PCIe Networking OptionsOptional 10GbE, 25GbE, 40GbE, 100GbE Ports Available
VGA/BMCASPEED AST2600 BMC
Remote ManagementRedfish API, IPMI 2.0; KVM with Dedicated LAN
Chassis
Form Factor1U Rackmount
Dimensions(mm)842.5mm x 449mm x 43.85mm
Storage
Onboard Storage ControllerSATA (6 Gbps) Controller + NVMe Controller
RAID Controller OptionsOptional Hardware RAID or SAS HBA Available
Drive Bays12 x 2.5” Hot-Swap
Expandability
Expansion Slots2 x PCI-E 5.0 x16 FHFL or 1 PCI-E 5.0 x16 FHFL w/ OCP
1 x PCI-E 5.0 x16 LP
1 x PCI-E 5.0 x8 LP
1 x PCI-E 5.0 x16 OCP
Power
Power Supply2 x 1600W Redundant High-Efficiency Power Supplies with I2C & PMBus
*SAS support only from optional SAS HBA/RAID card.

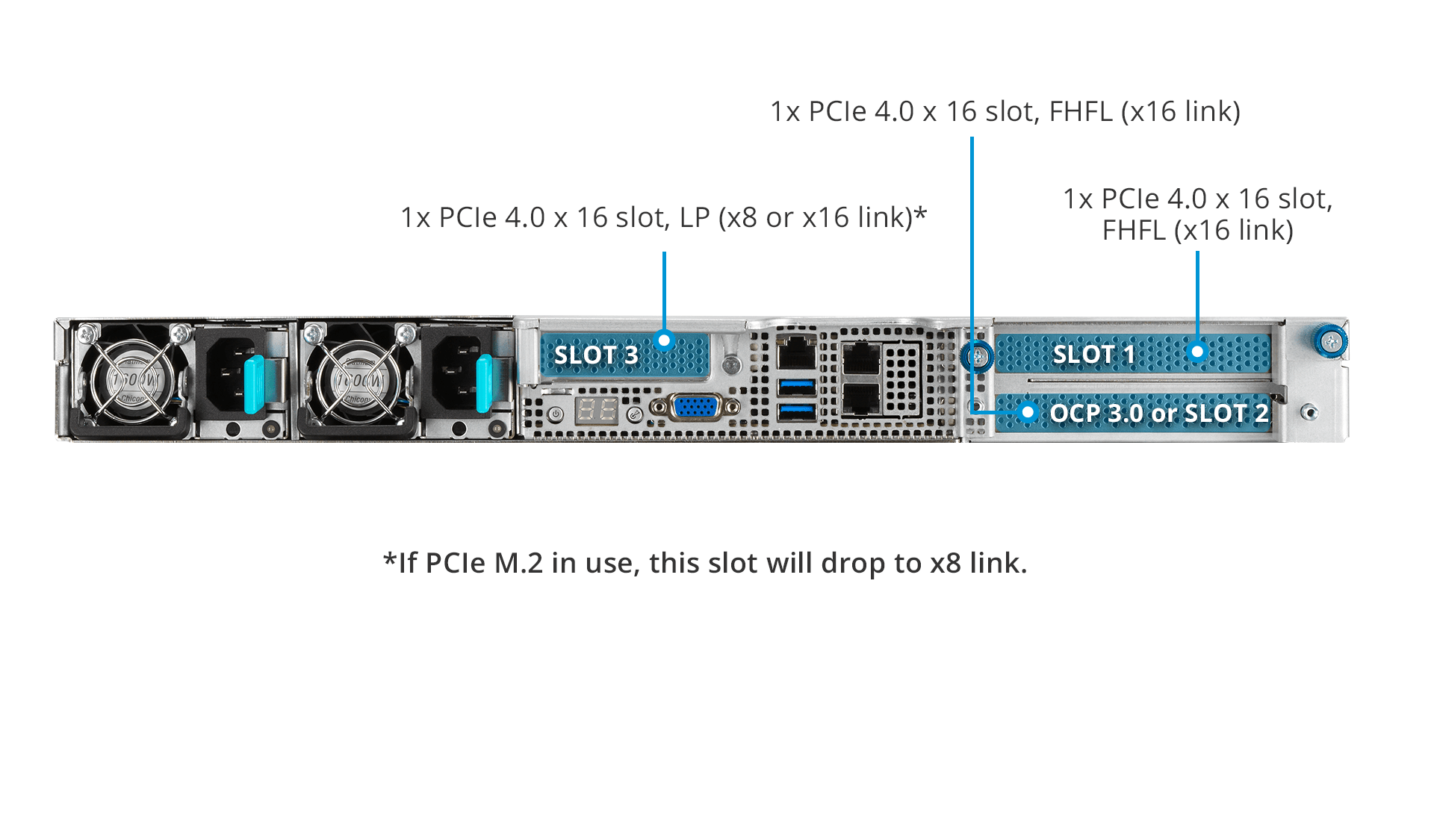

I/O Layout

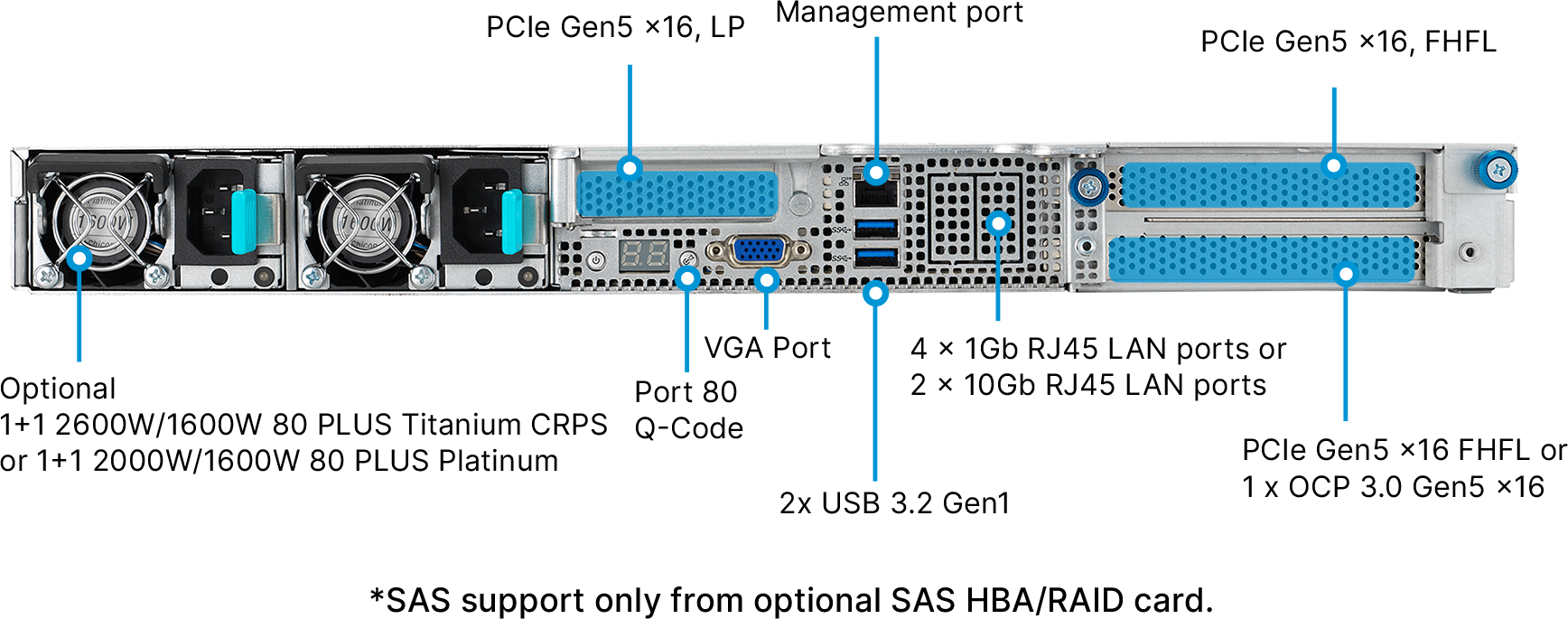

AX-1212AG4 Rear IO
