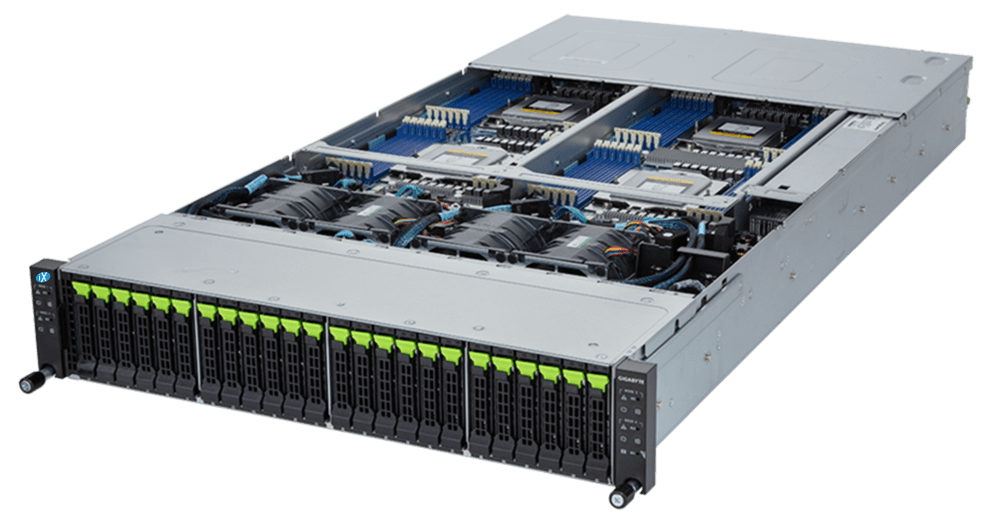

AX-22X424G (Gen 4) – 2U 4-Node Dual AMD EPYC Processor
Key Applications
- All-Flash NVMe Hyperconverged Infrastructure
- High-Performance File System
- Diskless HPC Clusters
- Container-as-a-Service; Application Accelerator
- HyperScale/Hyperconverged
- Compute Intensive Application
Outstanding Features
- 24 DIMM Slots Per Node – Up to 24 TB total memory
- 6 x 2.5” Hot-swap NVMe/SATA Drive Bays Per Node
- 2 x PCI-E 5.0 x16 Slots Per Node
- 1 x M.2 Slots Per Node
Specs
| Motherboard | |
|---|---|
| Processor Support | Each node (1 of 4): Dual AMD EPYC™ 9004 (Genoa) Series Processor |
| Chipset | AMD EPYC™ System on Chip (SoC) |
| System Memory (Max.) | Each node (1 of 4): Up to 6TB ECC 3DS LRDIMM, Up to DDR5-4800Mhz; 24 DIMM Slots per Node |
| Networking | Dual 1GbE i350-AM2 |
| PCIe Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/BMC | Each node (1 of 4): Aspeed AST2600 BMC |
| Remote Management | Each node (1 of 4): Redfish API, IPMI 2.0; KVM with Dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions(mm) | 877mm x 440mm x 87.5mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Each node (1 of 4): Gen 4 NVMe/SATA via AMD CPU |
| RAID Controller Options | Optional SAS HBA Available |
| Drive Bays | Each node (1 of 4): 6 x 2.5” Hot-Swap NVMe/SATA/SAS Drive Bays |
| Expandability | |
|---|---|
| Expansion Slots | Each node (1 of 4): 2 x PCI-E 5.0 LP x16 LP 1 x PCI-E 5.0 x16 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 3000W Redundant High-Efficiency Power Supplies with I2C & PMBus |

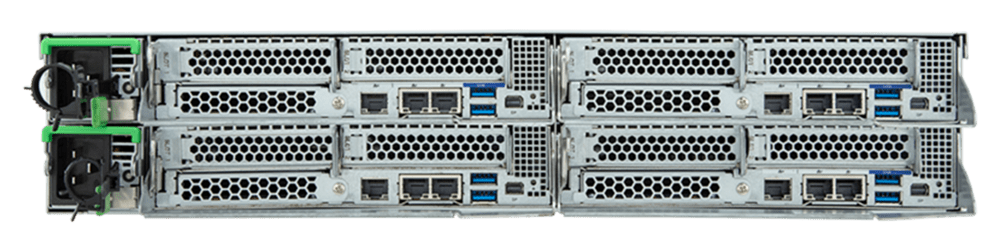

I/O Layout
