9. Directory Services¶
FreeNAS® supports integration with these directory services:
- Active Directory (for Windows 2000 and higher networks)
- LDAP
- NIS
- NT4 (for Windows networks older than Windows 2000)
It also supports Kerberos Realms, Kerberos Keytabs, and the ability to add additional parameters to Kerberos Settings.
This section summarizes each of these services and their available configurations within the FreeNAS® GUI.
9.1. Active Directory¶
Active Directory (AD) is a service for sharing resources in a Windows network. AD can be configured on a Windows server that is running Windows Server 2000 or higher or on a Unix-like operating system that is running Samba version 4. Since AD provides authentication and authorization services for the users in a network, it is not necessary to recreate these user accounts on the FreeNAS® system. Instead, configure the Active Directory service so that it can import the account information and imported users can be authorized to access the SMB shares on the FreeNAS® system.
Note
If the network has an NT4 domain controller, or any domain controller with a version earlier than Windows 2000, configure NT4 instead.
Many changes and improvements have been made to Active Directory support within FreeNAS®. It is strongly recommended to update the system to the latest FreeNAS® 9.10.2 before attempting Active Directory integration.
Before configuring the Active Directory service, ensure name
resolution is properly configured by ping ing the domain
name of the Active Directory domain controller from Shell on
the FreeNAS® system. If the ping fails, check the DNS
server and default gateway settings in
Network → Global Configuration
on the FreeNAS® system.
Next, add a DNS record for the FreeNAS® system on the Windows server and verify that the hostname of the FreeNAS® system can be pinged from the domain controller.
Active Directory relies on Kerberos, which is a time sensitive protocol. The time on both the FreeNAS® system and the Active Directory Domain Controller cannot be out of sync by more than a few minutes. The best way to ensure that the same time is running on both systems is to configure both systems to:
- use the same NTP server (set in
System → NTP Serverson the FreeNAS® system) - have the same timezone
- be set to either localtime or universal time at the BIOS level

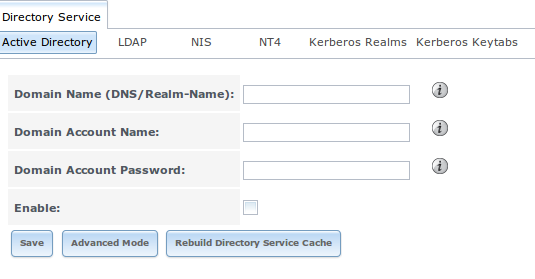

Figure 9.1.1
shows the screen that appears when
Directory Service → Active Directory
is chosen.
Table 9.1.1
describes the configurable options. Some settings are only available
in Advanced Mode. To see these settings, either click the
Advanced Mode button or configure the system to always
display these settings by checking the box
Show advanced fields by default in
System → Advanced.
Fig. 9.1.1 Configuring Active Directory
| Setting | Value | Advanced Mode | Description |
|---|---|---|---|
| Domain Name | string | name of Active Directory domain (example.com) or child domain (sales.example.com); this setting is mandatory and the GUI will refuse to save the settings if the domain controller for the specified domain cannot be found | |
| Domain Account Name | string | name of the Active Directory administrator account; this setting is mandatory and the GUI will refuse to save the settings if it cannot connect to the domain controller using this account name | |
| Domain Account Password | string | password for the Active Directory administrator account; this setting is mandatory and the GUI will refuse to save the settings if it cannot connect to the domain controller using this password | |
| NetBIOS Name | string | ✓ | limited to 15 characters; automatically populated with the original hostname of the system; use caution when changing this setting, as setting an incorrect value can corrupt an AD installation |
| Encryption Mode | drop-down menu | ✓ | choices are Off, SSL, or TLS |
| Certificate | drop-down menu | ✓ | select the certificate of the LDAP server if SSL connections are used; if a certificate does not exist yet, create a CA (in CAs), then create a certificate on the Active Directory server and import it to the FreeNAS® system with Certificates |
| Verbose logging | checkbox | ✓ | when checked, logs attempts to join the domain to /var/log/messages |
| UNIX extensions | checkbox | ✓ | only check this box if the AD server has been explicitly configured to map permissions for UNIX users; checking this box provides persistent UIDs and GUIDs, otherwise, users/groups are mapped to the UID/GUID range configured in Samba |
| Allow Trusted Domains | checkbox | ✓ | should only be enabled if network has active domain/forest trusts and you need to manage files on multiple domains; use with caution as it will generate more winbindd traffic, slowing down the ability to filter through user/group information |
| Use Default Domain | checkbox | ✓ | only available in Advanced Mode; when unchecked, the domain name is prepended to the username; if Allow Trusted Domains is checked and multiple domains use the same usernames, uncheck this box to prevent name collisions |
| Allow DNS updates | checkbox | ✓ | when unchecked, disables Samba from doing DNS updates when joining a domain |
| Disable Active Directory user/group cache | checkbox | ✓ | when checked, disables caching AD users and groups; useful if you cannot bind to a domain with a large number of users or groups |
| Site Name | string | ✓ | the relative distinguished name of the site object in Active Directory |
| Domain Controller | string | ✓ | will automatically be added to the SRV record for the domain and, when multiple controllers are specified, FreeNAS® selects the closest DC which responds |
| Global Catalog Server | string | ✓ | if the hostname of the global catalog server to use is specified, make sure it is resolvable |
| Kerberos Realm | drop-down menu | ✓ | select the realm created using the instructions in Kerberos Realms |
| Kerberos Principal | drop-down menu | ✓ | browse to the location of the keytab created using the instructions in Kerberos Keytabs |
| AD timeout | integer | ✓ | in seconds, increase if the AD service does not start after connecting to the domain |
| DNS timeout | integer | ✓ | in seconds, increase if AD DNS queries timeout |
| Idmap backend | drop-down menu and Edit | ✓ | select the backend to use to map Windows security identifiers (SIDs) to UNIX UIDs and GIDs; see Table 9.1.2 for a summary of the available backends; click the Edit link to configure that backend’s editable options |
| Windbind NSS Info | drop-down menu | ✓ | defines the schema to use when querying AD for user/group info; rfc2307 uses the RFC2307 schema support included in Windows 2003 R2, sfu20 is for Services For Unix 3.0 or 3.5, and sfu is for Services For Unix 2.0 |
| SASL wrapping | drop-down menu | ✓ | defines how LDAP traffic is transmitted; choices are plain (plain text), sign (signed only), or seal (signed and encrypted); Windows 2000 SP3 and higher can be configured to enforce signed LDAP connections |
| Enable | checkbox | uncheck to disable the configuration without deleting it |
Table 9.1.2 summarizes the backends which are available in the Idmap backend drop-down menu. Each backend has its own man page which gives implementation details. Since selecting the wrong backend will break Active Directory integration, a pop-up menu will appear whenever changes are made to this setting.
| Value | Description |
|---|---|
| ad | AD server uses RFC2307 or Services For Unix schema extensions; mappings must be provided in advance by adding the uidNumber attributes for users and gidNumber attributes for groups in the AD |
| adex | AD server uses RFC2307 schema extensions and supports domain trusts as well as two-way cross-forest trusts; mappings must be provided in advance by adding the POSIX attribute information to the users and groups objects in AD using a tool such as “Identity Services for Unix” on Windows 2003 R2 and later |
| autorid | similar to rid, but automatically configures the range to be used for each domain, so there is no need to specify a specific range for each domain in the forest; the only needed configuration is the range of UID/GIDs to use for user/group mappings and an optional size for the ranges |
| hash | uses a hashing algorithm for mapping and can be used to support local name mapping files |
| ldap | stores and retrieves mapping tables in an LDAP directory service; default for LDAP directory service |
| nss | provides a simple means of ensuring that the SID for a Unix user is reported as the one assigned to the corresponding domain user |
| rfc2307 | an AD server is required to provide the mapping between the name and SID and an LDAP server is required to provide the mapping between the name and the UID/GID |
| rid | default for AD and NT4 directory services; requires an explicit idmap configuration for each domain, using disjoint ranges where a writeable default idmap range should be defined, using a backend like tdb or ldap |
| tdb | default backend used by winbindd for storing mapping tables |
| tdb2 | substitute for tdb used by winbindd in clustered environments |
Click the Rebuild Directory Service Cache button if a new Active Directory user needs immediate access to FreeNAS®; otherwise this occurs automatically once a day as a cron job.
Note
Active Directory places restrictions on which characters are allowed in Domain and NetBIOS names, a limits the length of those names to 15 characters. If there are problems connecting to the realm, verify that your settings do not include any disallowed characters. Also, the Administrator account password cannot contain the $ character. If a $ exists in the domain administrator’s password, kinit will report a “Password Incorrect” error and ldap_bind will report an “Invalid credentials (49)” error.
It can take a few minutes after configuring the Active Directory service for the AD information to be populated to the FreeNAS® system. Once populated, the AD users and groups will be available in the drop-down menus of the Permissions screen of a volume/dataset. For performance reasons, every available user may not show in the listing. However, it will autocomplete all applicable users when typing in a username.
The Active Directory users and groups that have been imported to the FreeNAS® system can be shown by using these commands from the FreeNAS® Shell. To view users:
wbinfo -u
To view groups:
wbinfo -g
In addition, wbinfo -t will test the connection and, if successful, will show a message similar to:
checking the trust secret for domain YOURDOMAIN via RPC calls succeeded
To manually check that a specified user can authenticate:
net ads join -S dcname -U username
If no users or groups are listed in the output, these commands can provide more troubleshooting information:
getent passwd
getent group
If the wbinfo commands display the network users, but they do not show up in the drop-down menu of a Permissions screen, it may be because it is taking longer than the default ten seconds for the FreeNAS® system to join Active Directory. Try bumping up the value of AD timeout to 60 seconds.
9.1.1. Troubleshooting Tips¶
When running AD in a 2003/2008 mixed domain, refer to for instructions on how to prevent the secure channel key from becoming corrupt.
Active Directory uses DNS to determine the location of the domain
controllers and global catalog servers in the network. Use the
host -t srv _ldap._tcp.domainname.com command to determine
the network’s SRV records and, if necessary, change the weight and/or
priority of the SRV record to reflect the fastest server. More
information about SRV records can be found in the Technet article
How DNS Support for Active Directory Works.
The realm that is used depends upon the priority in the SRV DNS record, meaning that DNS can override your Active Directory settings. When unable to connect to the correct realm, check the SRV records on the DNS server. This article describes how to configure KDC discovery over DNS and provides some examples of records with differing priorities.
If the cache becomes out of sync due to an AD server being taken off
and back online, resync the cache using
Directory Service → Active Directory
→ Rebuild Directory Service Cache.
An expired password for the administrator account will cause kinit to fail, so ensure that the password is still valid. Also, double-check that the password on the AD account being used does not include any spaces or special symbols, and is not unusually long.
If the Windows server version is lower than 2008 R2, try creating a
Computer entry on the Windows server’s OU. When creating
this entry, enter the FreeNAS® hostname in the name field.
Make sure that it is under 15 characters and that it is the same name
as the one set in the Hostname field in
Network → Global Configuration
and the NetBIOS Name in
Directory Service → Active Directory
settings. Make sure the hostname of the domain controller is set in
the Domain Controller field of
Directory Service → Active Directory.
9.1.2. If the System Will not Join the Domain¶
If the system will not join the Active Directory domain, run these commands in the order listed. If any of the commands fail or result in a traceback, create a bug report at bugs.freenas.org that includes the commands in the order in which they were run and the exact wording of the error message or traceback.
Start with these commands, where the echo commands should return a value of 0 and the klist command should show a Kerberos ticket:
sqlite3 /data/freenas-v1.db "update directoryservice_activedirectory set ad_enable=1;"
echo $?
service ix-kerberos start
service ix-nsswitch start
service ix-kinit start
service ix-kinit status
echo $?
klist
Next, only run these two commands if the Unix extensions box is checked in Advanced Mode and a keytab has been uploaded using Kerberos Keytabs:
service ix-sssd start
service sssd start
Finally, run these commands. Again, the echo command should return a 0:
python /usr/local/www/freenasUI/middleware/notifier.py start cifs
service ix-activedirectory start
service ix-activedirectory status
echo $?
python /usr/local/www/freenasUI/middleware/notifier.py restart cifs
service ix-pam start
service ix-cache start &
9.2. LDAP¶
FreeNAS® includes an OpenLDAP client for accessing information from an LDAP server. An LDAP server provides directory services for finding network resources such as users and their associated permissions. Examples of LDAP servers include Microsoft Server (2000 and newer), Mac OS X Server, Novell eDirectory, and OpenLDAP running on a BSD or Linux system. If an LDAP server is running on your network, configure the FreeNAS® LDAP service so network users can authenticate to the LDAP server and have authorized access to the data stored on the FreeNAS® system.
Note
LDAP authentication for SMB shares is disabled unless
the LDAP directory has been configured for and populated with Samba
attributes. The most popular script for performing this task is
smbldap-tools
and instructions for using it can be found at
The Linux Samba-OpenLDAP Howto.
In addition, the LDAP server must support SSL/TLS and the
certificate for the LDAP server must be imported with
System → Certificates → Import Certificate.
Tip
Apple’s Open Directory is an LDAP-compatible directory service into which FreeNAS® can be integrated. See FreeNAS with Open Directory in Mac OS X environments.

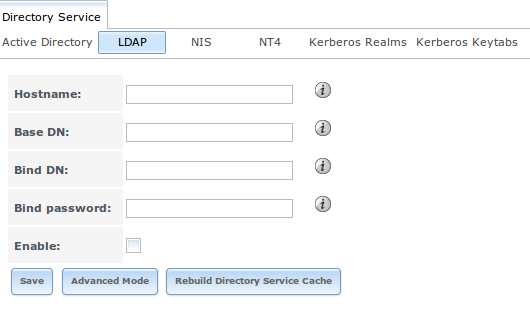

Figure 9.2.1
shows the LDAP Configuration screen that is seen after clicking
Directory Service → LDAP.
Fig. 9.2.1 Configuring LDAP
Table 9.2.1
summarizes the available configuration options. Some settings are only
available in Advanced Mode. To see these settings, either click the
Advanced Mode button or configure the system to always
display these settings by checking the box
Show advanced fields by default in
System → Advanced.
Those who are new to LDAP terminology should skim through the OpenLDAP Software 2.4 Administrator’s Guide.
| Setting | Value | Advanced Mode | Description |
|---|---|---|---|
| Hostname | string | hostname or IP address of LDAP server | |
| Base DN | string | top level of the LDAP directory tree to be used when searching for resources (e.g. dc=test,dc=org) | |
| Bind DN | string | name of administrative account on LDAP server (e.g. cn=Manager,dc=test,dc=org) | |
| Bind password | string | password for Root bind DN | |
| Allow Anonymous Binding | checkbox | ✓ | instructs LDAP server to not provide authentication and to allow read and write access to any client |
| User Suffix | string | ✓ | optional; can be added to name when user account added to LDAP directory (e.g. dept. or company name) |
| Group Suffix | string | ✓ | optional; can be added to name when group added to LDAP directory (e.g. dept. or company name) |
| Password Suffix | string | ✓ | optional; can be added to password when password added to LDAP directory |
| Machine Suffix | string | ✓ | optional; can be added to name when system added to LDAP directory (e.g. server, accounting) |
| SUDO Suffix | string | ✓ | use if LDAP-based users need superuser access |
| Kerberos Realm | drop-down menu | ✓ | select the realm created using the instructions in Kerberos Realms |
| Kerberos Keytab | drop-down menu | ✓ | browse to the location of the keytab created using the instructions in Kerberos Keytabs |
| Encryption Mode | drop-down menu | ✓ | choices are Off, SSL, or TLS; note that either SSL or TLS and a Certificate must be selected in order for authentication to work |
| Certificate | drop-down menu | ✓ | select the certificate of the LDAP server or the CA that signed that certificate (required if authentication is used); iIf your LDAP server does not already have a certificate, create a CA using CAs, then the certificate using Certificates and install the certificate on the LDAP server |
| LDAP timeout | integer | increase this value (in seconds) if obtaining a Kerberos ticket times out | |
| DNS timeout | integer | increase this value (in seconds) if DNS queries timeout | |
| Idmap backend | drop-down menu and Edit | ✓ | select the backend to use to map Windows security identifiers (SIDs) to UNIX UIDs and GIDs; see Table 9.1.2 for a summary of the available backends; click the Edit link to configure the backend’s editable options |
| Samba Schema | checkbox | ✓ | only check this box if you need LDAP authentication for SMB shares and have already configured the LDAP server with Samba attributes |
| Auxiliary Parameters | string | additional options for sssd.conf(5) | |
| Schema | drop-down menu | if Samba Schema is checked, select the schema to use; choices are rfc2307 and rfc2307bis | |
| Enable | checkbox | uncheck to disable the configuration without deleting it |
Click the Rebuild Directory Service Cache button after adding a user to LDAP who needs immediate access to FreeNAS®. Otherwise this occurs automatically once a day as a cron job.
Note
FreeNAS® automatically appends the root DN. This means that the scope and root DN should not be included when configuring the user, group, password, and machine suffixes.
LDAP users and groups appear in the drop-down menus of the Permissions screen of a volume/dataset after configuring the LDAP service. Type getent passwd from Shell to verify that the users have been imported. Type getent group to verify that the groups have been imported.
If the users and groups are not listed, refer to
Common errors encountered when using OpenLDAP Software
for common errors and how to fix them. When troubleshooting LDAP, open
Shell and look for error messages in /var/log/auth.log.
9.3. NIS¶
Network Information Service (NIS) is a service which maintains and distributes a central directory of Unix user and group information, hostnames, email aliases, and other text-based tables of information. If a NIS server is running on your network, the FreeNAS® system can be configured to import the users and groups from the NIS directory.
Note
In Windows Server 2016, Microsoft removed the Identity Management for Unix (IDMU) and NIS Server Role. See Clarification regarding the status of Identity Management for Unix (IDMU) & NIS Server Role in Windows Server 2016 Technical Preview and beyond.

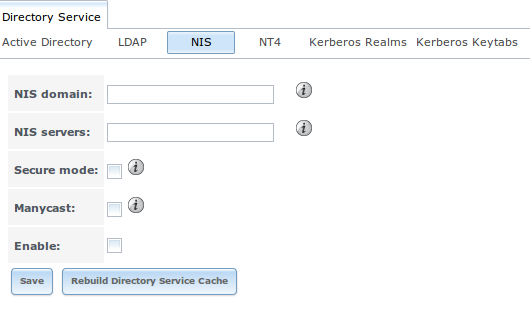

Figure 9.3.1
shows the configuration screen which opens when you click
Directory Service → NIS.
Table 9.3.1
summarizes the configuration options.
Fig. 9.3.1 NIS Configuration
| Setting | Value | Description |
|---|---|---|
| NIS domain | string | name of NIS domain |
| NIS servers | string | comma delimited list of hostnames or IP addresses |
| Secure mode | checkbox | if checked, ypbind(8) will refuse to bind to any NIS server that is not running as root on a TCP port number over 1024 |
| Manycast | checkbox | if checked, ypbind will bind to the server that responds the fastest; this is useful when no local NIS server is available on the same subnet |
| Enable | checkbox | uncheck to disable the configuration without deleting it |
Click the Rebuild Directory Service Cache button after adding a user to NIS who needs immediate access to FreeNAS®. Otherwise this occurs automatically once a day as a cron job.
9.4. NT4¶
This service should only be configured if the Windows network’s domain controller is running NT4. If the network’s domain controller is running a more recent version of Windows, you should configure Active Directory instead.

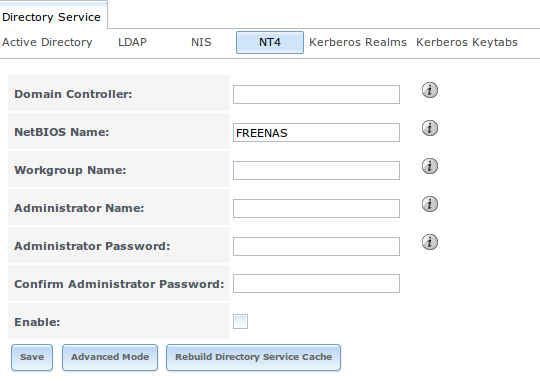

Figure 9.4.1
shows the configuration screen that appears when
Directory Service → NT4
is clicked. These options are summarized in
Table 9.4.1.
Some settings are only available in Advanced Mode. To see these
settings, either click the Advanced Mode button or
configure the system to always display these settings by checking the
box Show advanced fields by default in
System → Advanced.
Fig. 9.4.1 NT4 Configuration Options
| Setting | Value | Advanced Mode | Description |
|---|---|---|---|
| Domain Controller | string | hostname of domain controller | |
| NetBIOS Name | string | hostname of FreeNAS® system ; cannot be longer than 15 characters; cannot be the same as the Workgroup Name | |
| Workgroup Name | string | name of Windows server’s workgroup | |
| Administrator Name | string | name of the domain administrator account | |
| Administrator Password | string | input and confirm the password for the domain administrator account | |
| Use default domain | checkbox | only available in Advanced Mode; when unchecked, the domain name is prepended to the username | |
| Idmap backend | drop-down and Edit menu | ✓ | select the backend to use to map Windows security identifiers (SIDs) to UNIX UIDs and GIDs; see Table 9.1.2 for a summary of the available backends; click the Edit link to configure the backend’s editable options |
| Enable | checkbox | uncheck to disable the configuration without deleting it |
Click the Rebuild Directory Service Cache button after adding a user to Active Directory who needs immediate access to FreeNAS®. Otherwise this occurs automatically once a day as a cron job.
9.5. Kerberos Realms¶
A default Kerberos realm is created for the local system in FreeNAS®.
Directory Service → Kerberos Realms
can be used to view and add Kerberos realms. If the network contains
a KDC, click the Add kerberos realm button to add the
Kerberos realm. This configuration screen is shown in
Figure 9.5.1.

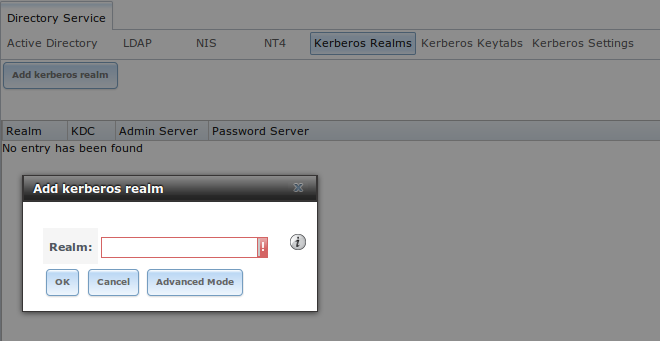

Fig. 9.5.1 Adding a Kerberos Realm
Table 9.5.1
summarizes the configurable options. Some settings are only available
in Advanced Mode. To see these settings, either click the
Advanced Mode button or configure the system to always
display these settings by checking the box
Show advanced fields by default in
System → Advanced.
| Setting | Value | Advanced Mode | Description |
|---|---|---|---|
| Realm | string | mandatory; name of the realm | |
| KDC | string | ✓ | name of the Key Distribution Center |
| Admin Server | string | ✓ | server where all changes to the database are performed |
| Password Server | string | ✓ | server where all password changes are performed |
9.6. Kerberos Keytabs¶
Kerberos keytabs are used to do Active Directory or LDAP joins without a password. This means that the password for the Active Directory or LDAP administrator account does not need to be saved into the FreeNAS® configuration database, which is a security risk in some environments.
When using a keytab, it is recommended to create and use a less privileged account for performing the required queries as the password for that account will be stored in the FreeNAS® configuration database. To create the keytab on a Windows system, use these commands:
ktpass.exe -out hostname.keytab host/ hostname@DOMAINNAME -ptype KRB5_NT_PRINCIPAL -mapuser DOMAIN\username -pass userpass
setspn -A host/ hostname@DOMAINNAME DOMAIN\username
where:
- hostname is the fully qualified hostname of the domain controller
- DOMAINNAME is the domain name in all caps
- DOMAIN is the pre-Windows 2000 short name for the domain
- username is the privileged account name
- userpass is the password associated with username
This will create a keytab with sufficient privileges to grant tickets.
After the keytab is generated, use
Directory Service → Kerberos Keytabs
→ Add kerberos keytab
to add it to the FreeNAS® system.
To instruct the Active Directory service to use the keytab, select the
installed keytab using the drop-down Kerberos keytab menu
in
Directory Service → Active Directory.
When using a keytab with Active Directory, make sure that the
“username” and “userpass” in the keytab matches the
“Domain Account Name” and “Domain Account Password” fields in
Directory Service → Active Directory.
To instruct LDAP to use the keytab, select the installed keytab using
the drop-down “Kerberos keytab” menu in
Directory Service → LDAP.
9.7. Kerberos Settings¶
To configure additional Kerberos parameters, use
Directory Service → Kerberos Settings.
Figure 9.7.1
shows the fields available:
- Appdefaults auxiliary parameters: contains settings used by some Kerberos applications. The available settings and their syntax are listed in the [appdefaults] section of krb.conf(5).
- Libdefaults auxiliary parameters: contains settings used by the Kerberos library. The available settings and their syntax are listed in the [libdefaults] section of krb.conf(5).
Fig. 9.7.1 Additional Kerberos Settings
