25. Appendix B: TrueNAS® Product Catalog

iXsystems offers many storage products that are designed to fully use the many features of TrueNAS®. These products have enterprise features like High Availability (HA), high-efficiency storage optimization, and fast networking speeds for data transfer. Scalability and modularity are also featured.

Each product makes full use of TrueNAS® and have a variety of features at different price points. To see hardware specifications or request a quote, visit the iXsystems website or contact an iX representative at sales@ixsystems.com.

25.1. TrueNAS® Unified Storage Arrays

TrueNAS® storage products are divided into two families, the X-Series and M-Series. Each product supports High Availability (HA) hardware features and all software features included with TrueNAS®. The individual specifications of each unit are tuned to maximize efficiency, reliability, and affordability for different size IT environments. iXsystems provides detailed specifications and comparisons of each TrueNAS® product.

25.1.1. X-Series

_images/x-series.png

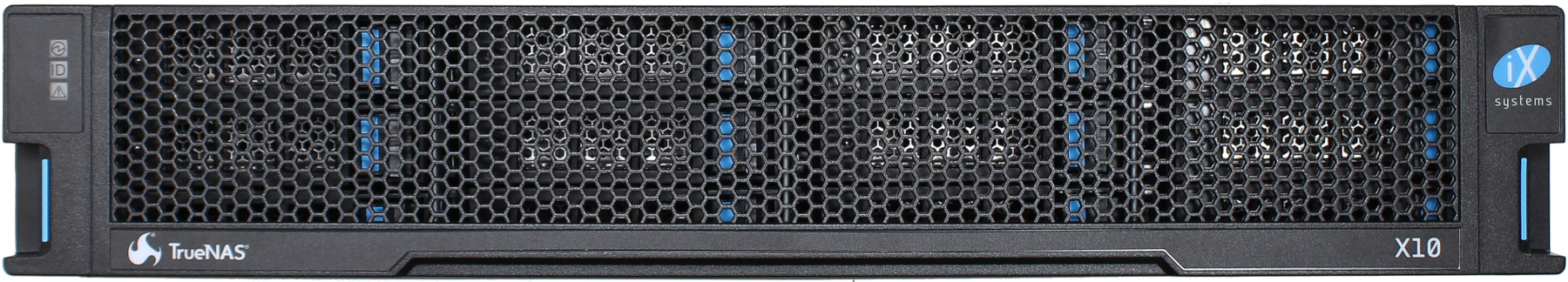

The X-Series are 2U, 12-bay (front-loading), hybrid data storage arrays. They support single or dual TrueNAS controller configurations and can be connected with expansion shelves to increase storage capacity. Physical dimensions are 21”L x 19”W x 3.5”H (531 x 447 x 89 mm). They weigh 44 lbs (20 kg) and draw 138-200 W of power when fully loaded with drives.

25.1.2. M-Series

_images/m40.png

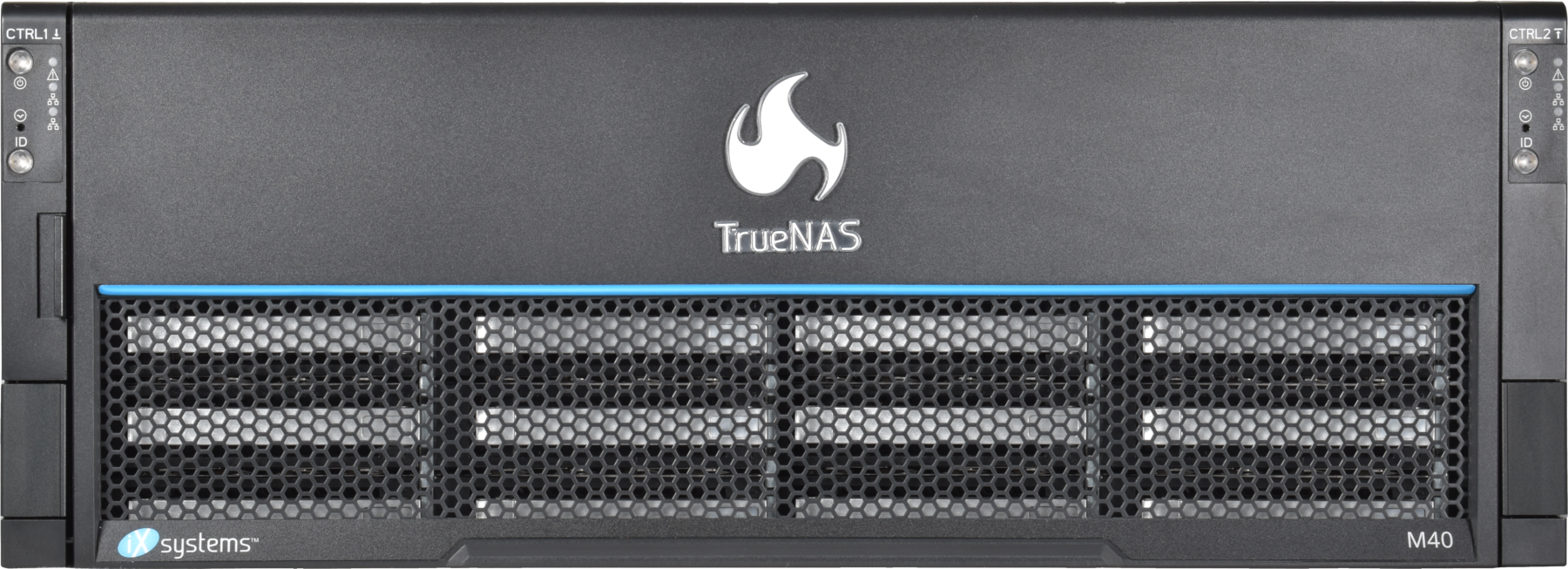

The M-Series are 4U, 24-bay (front-loading), hybrid data storage arrays. They support single or dual TrueNAS controller configurations and can be connected with expansion shelves to increase storage capacity to a maximum of 2-10.4 PB. Physical dimensions are 27”L x 19”W x 7”H (686 x 483 x 178 mm). They weigh 114 lbs (52 kg) when fully loaded with drives. Maximum power draw is determined by the total number of drives attached to the system. Without drives, M-Series units draw 404-905 W of power, depending on TrueNAS controller configuration.

25.2. Expansion Shelves

Expansion shelves are an easy way to expand TrueNAS® capacity. All TrueNAS® expansion shelves feature redundant, hot-swappable, high-efficiency power supplies, redundant cooling, and are RoHS 6/6 compliant.

25.2.1. ES12

_images/es12.png

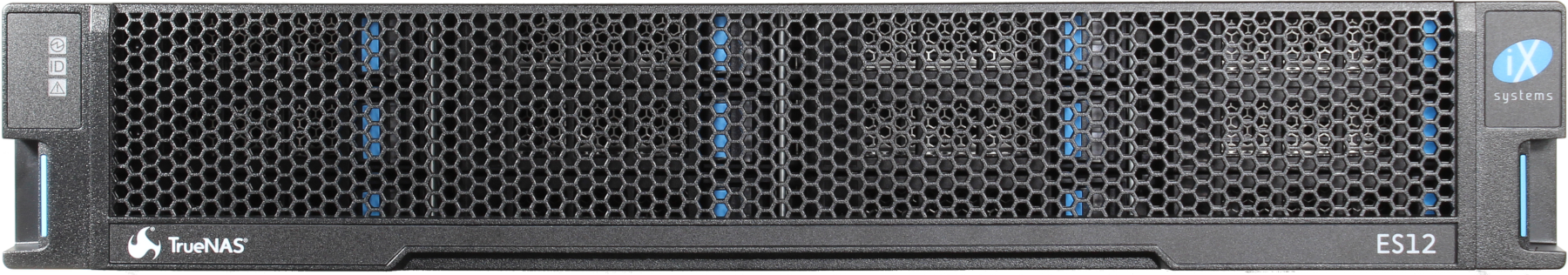

The TrueNAS® ES12 is a 2U, 12-bay (front-loading), SAS3 (12 Gb/s) expansion shelf with dual expansion controllers and redundant power supplies. Physical dimensions are 21”L x 19”W x 3.5”H (531 x 447 x 89 mm). It weighs 44 lbs (20 kg) and draws 112-180 W of power when fully loaded with drives.

25.2.2. ES24

_images/es24.png

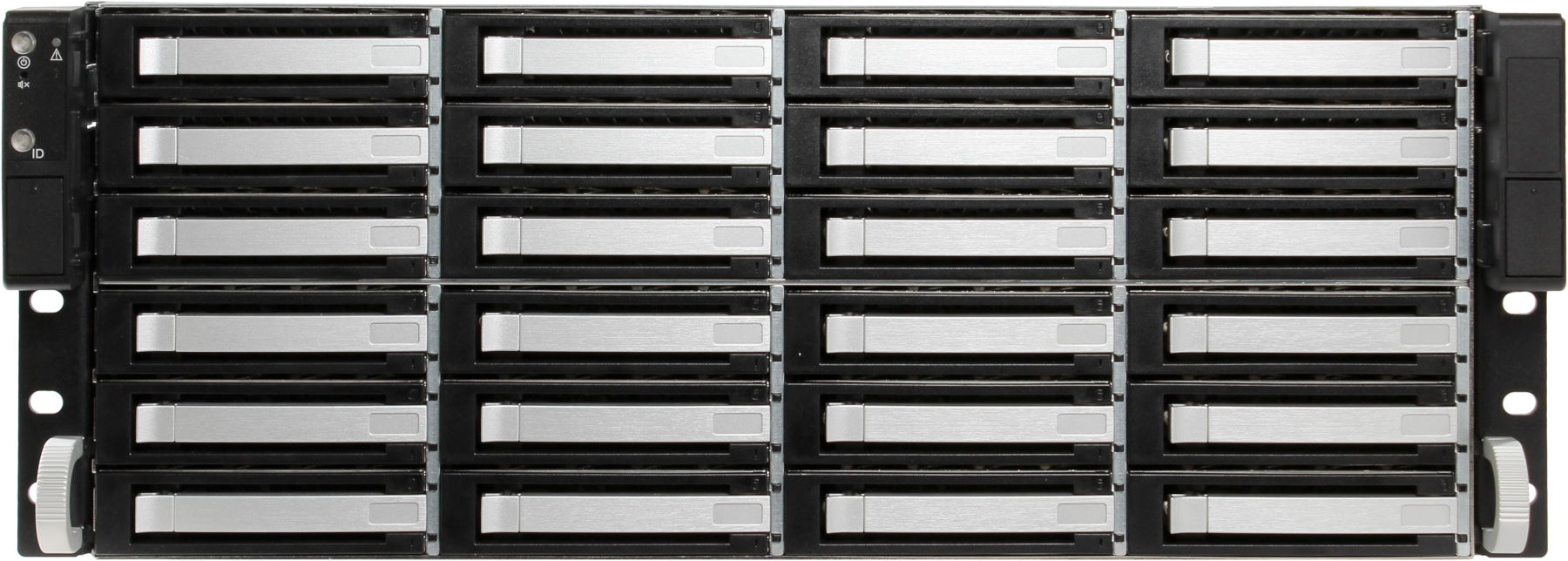

The TrueNAS® ES24 is a 4U, 24-bay (front-loading), SAS3 (12 Gb/s) expansion shelf with dual expansion controllers and redundant power supplies. Physical dimensions are 20.5”L x 19”W x 7”H (521 x 483 x 178 mm). It weighs 76 lbs (34.5 kg) and draws 231-288 W of power when fully loaded with drives.

25.2.3. ES60

_images/es60.png

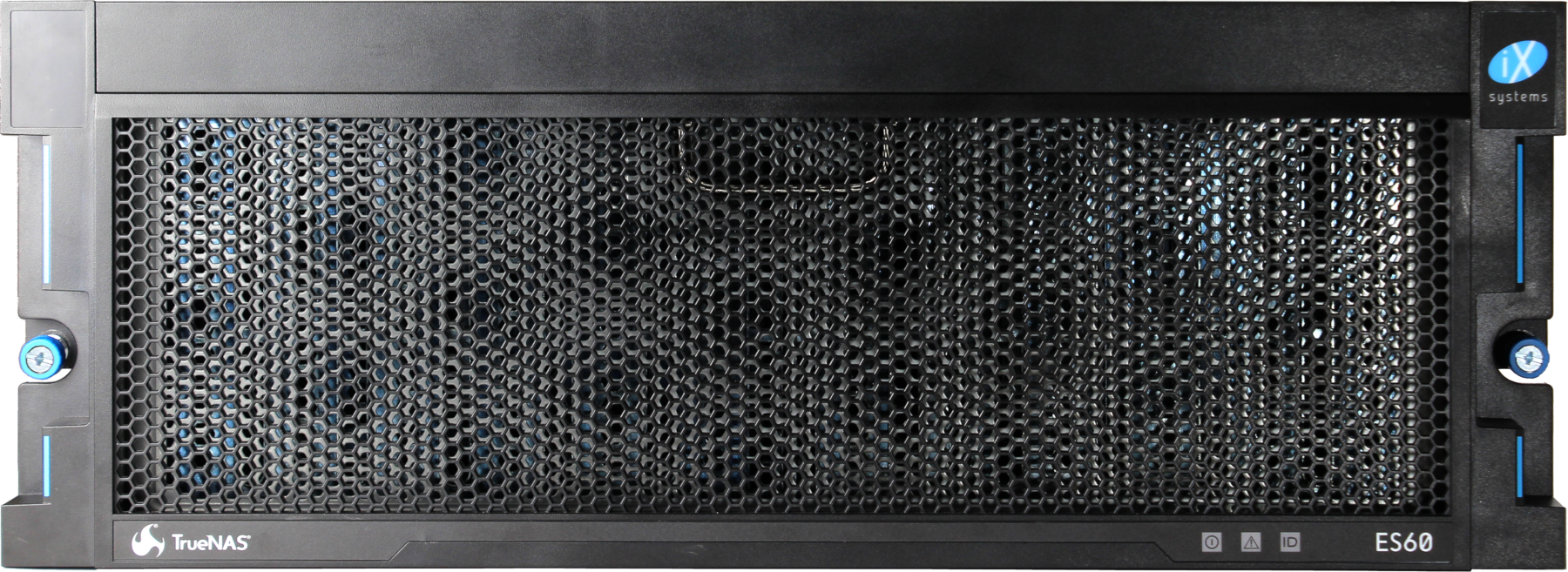

The TrueNAS® ES60 is a 4U, 60-bay (top-loading), SAS3 (12 Gb/s) expansion shelf with dual expansion controllers and redundant power supplies. Physical dimensions are 33.38”L x 19”W x 6.9”H (848 x 483 x 176 mm). It weighs 175 lbs (80 kg) and draws 479-821 W of power when fully loaded with drives.
