2U Dual Intel Xeon Scalable Processors
Use Cases
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High End Enterprise Server
- DB Processing & Storage
Highlights
- 32 DIMM Slots – Up to 8TB total memory
- 24 x 2.5″ Hot-Swap NVMe/SATA drive bays
- 8 x PCI-E 4.0 slots
Specs
| Motherboard | |
|---|---|
| Processor Support | Dual Intel® Xeon® LGA 4189 Scalable Gen. 3 Processors (Ice Lake) with 3 x UPI Links Up to 11.2GT/s |
| Chipset | Intel® C621A Chipset |
| System Memory (Max.)* | Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM; RDIMM |
| Networking | Dual 1GbE i350-AM2 |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | ASPEED AST2500 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions (mm) | 438 x 87.5 x 730 |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® PCH 621A SATA (6 Gbps) controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 24 x 2.5" Hot-swap NVMe/SATA/SAS drive bays (24 x 2.5" NVMe) |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 8 PCI-E 4.0 LP HHHL 1 PCI-E 3.0 OCP 1 PCI-E 2.0 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 1600W Redundant high-efficiency power supplies with I2C & PMBus |

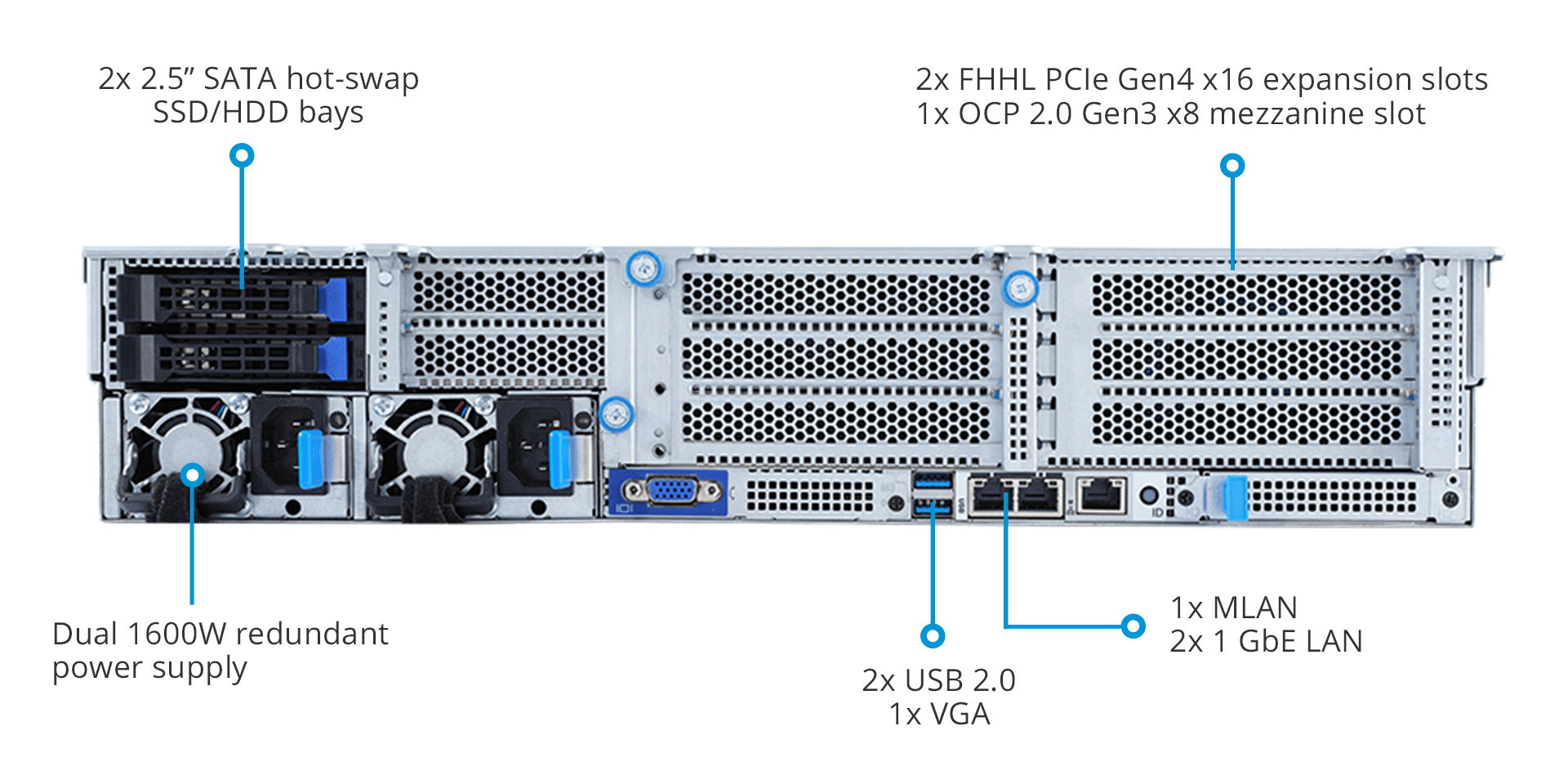

I/O Layout
