2U Single AMD EPYC Processor
Use Cases
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High End Enterprise Server
- DB Processing & Storage
Highlights
- 8 DIMM Slots – up to 2TB total memory
- 4 x SAS*/SATA + 4 x NVMe/SAS*/SATA
- 8 x PCI-E x16 4.0 slots
- Up to 4 x Dual Slot GPU’s
- 1 x M.2 Slots(x4)
Specs
| Motherboard | |
|---|---|
| Processor Support | Single AMD EPYC™ 7003/7002 (Milan/Rome) Series Processor |
| Chipset | AMD 2nd Gen EPYC™ System on Chip (SoC) |
| System Memory (Max.)* | Up to 2TB Registered ECC DDR4 3200MHz SDRAM; 32 DIMM slots |
| Networking | Dual 1GbE i350-AM2 |
| Networking Options | Optional 10Gbe, 25Gbe, 40Gbe, 100Gbe Ports Available |
| VGA/Audio | ASPEED AS2600 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions(mm) | 840mm x 440mm x 88.9mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® SATA (6 Gbps) controller + NVMe controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 4 x SAS*/SATA + 4 x NVMe/SAS*/SATA |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 8 PCI-E 4.0 FHFL 1 PCI-E 4.0 x8 LP HHHL 1 PCI-E 3.0 x8 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 2200W Redundant high-efficiency power supplies with I2C & PMBus |

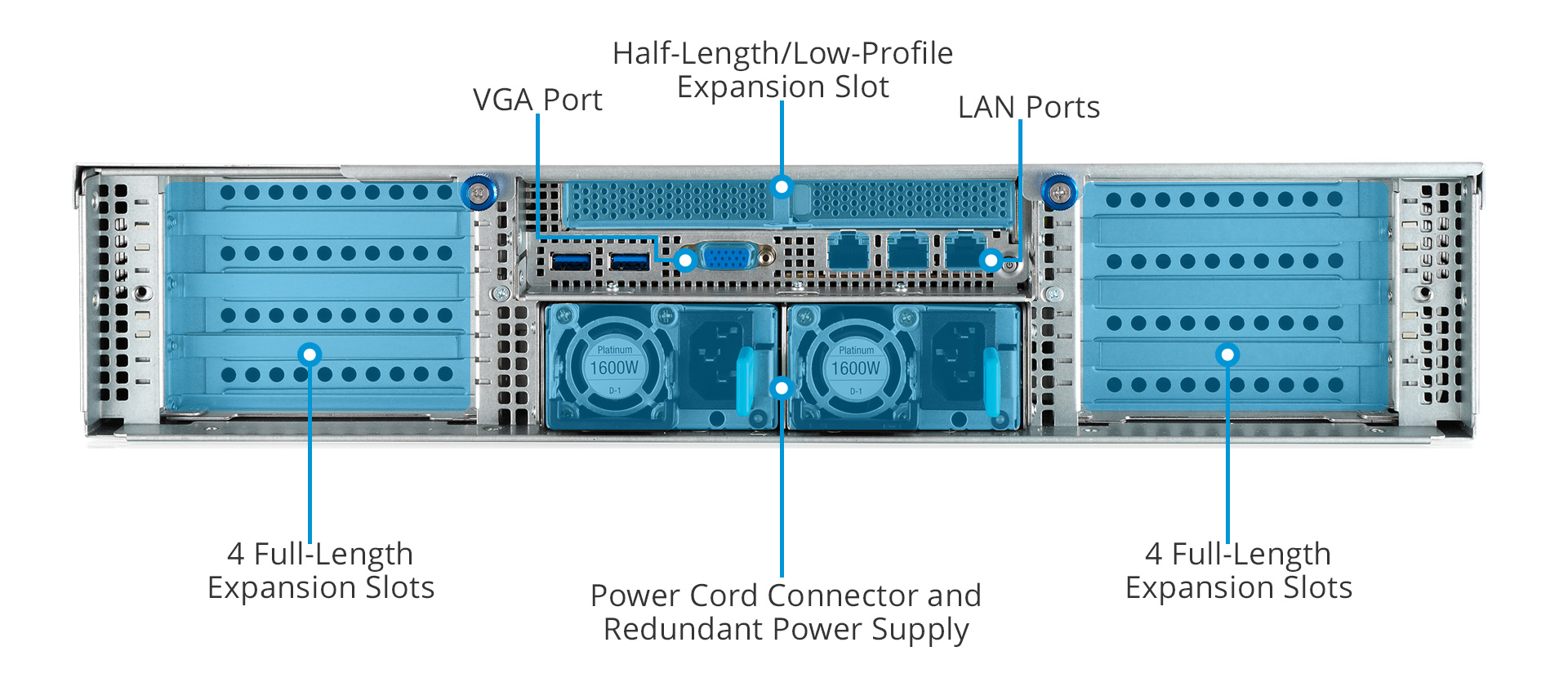

I/O Layout
