AX-1212V

AX-1212V – 1U Dual AMD Virtualization Server

Key Applications

  • Virtualization
  • Cloud Computing
  • High-End Enterprise Server
  • DB Processing & Storage
  • Data Center Applications
  • Firewall Applications

Outstanding Features

  • 32 DIMM Slots
  • 12 x 2.5” Hot-Swap NVMe Bays in 1U
  • 2 x M.2 Slots
  • 2 x PCIe Slots
  • GPU Option

Specs

Motherboard
Processor SupportAMD EPYC™ 7543 Processor 32-Core 2.80GHz 256MB Cache (225W) Up to 2 x Processors for up to 64 Cores
ChipsetAMD 3rd Gen EPYC™ System on Chip (SoC)
System Memory (Max.)256GB/512GB DDR4 3200Mhz ECC/REG Memory (Upgradable to 1 TB or 2 TB)
NetworkingDual Port Intel X710-AT2 10 Gigabit LAN Controller + 1 x Management LAN
Networking Options2 x 10GbE (Default), 4 x 25GbE or 4 x 100GbE (Optional)
VGA/AudioAspeed AST2600 with 64MB VRAM
Remote ManagementIntegrated IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN Dedicated LAN port
Chassis
Form Factor1U Rackmount
Dimensions (mm)842.5mm x 449mm x 43.85mm (1U) 33.17” x 17.68” x 1.73”
Storage
Onboard Storage ControllerLSI/Broadcom 8-Port Int. (16-Port Optional) 12Gb/s - support for Tri mode SATA+SAS+PCIe (NVMe) PCI-e 4.0 x8, 4GB RAM DDR4
RAID Controller OptionsLSI Hardware RAID 1 Pre-configurerd
Drive Bays12-Bay Hot-Swap 2.5” NVMe/SAS/SATA, 2 x 480GB SATA 2.5” Solid State Drives configured in a RAID1
Peripheral BaysN/A
Expandability
Expansion Slots*2 x PCIe Gen4 x16, FHFL for Optional 100GbE, 40GbE, 25GbE or 10GbE Networking
Power
Power Supply1600W Redundant (1+1) Power Supply

*If PCIe M.2 in use, this slot will drop to x8 link.

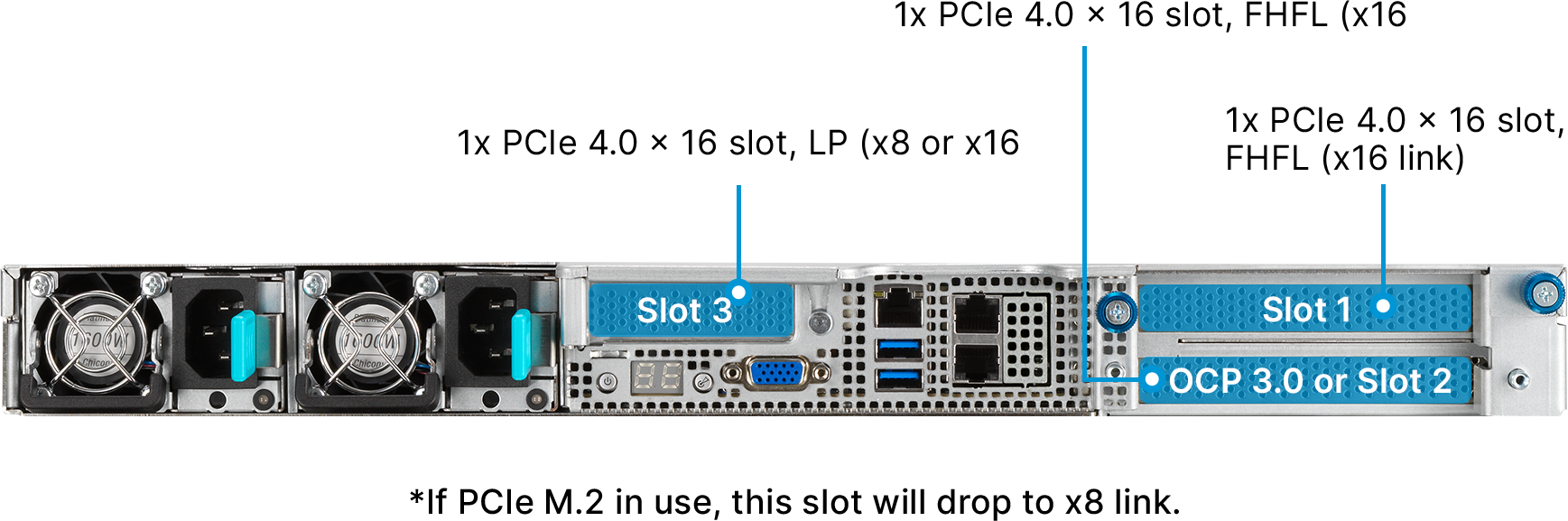

I/O Layout
