4U 8-Node Dual Intel Xeon Scalable Processors
Use Cases
- Hyperscale Solutions
- Cloud Computing
- Cluster Node
- Data Center
- HPC cluster computer nodes
Highlights
- 16 DIMM Slots – Up to 4TB Memory per Node
- 6 x 2.5” Hot-swap SATA or 4 x 2.5” SATA & 2 x Hot-swap NMVe U.2
- Configurable Networking: 1/10/25/40/100GbE
- 1 Low-profile PCI-E 4.0 Slot
Specs
| Motherboard | |
|---|---|
| Processor Support | Dual Intel® Xeon® LGA 4189 Scalable Gen. 3 Processors (Ice Lake) with 3 x UPI Links Up to 11.2GT/s |
| Chipset | Intel® C621 chipset |
| System Memory (Max.)* | Each node (1 of 8): Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 16 DIMM slots |
| Networking | Configurable |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | Each node (1 of 8): Aspeed AST2500 |
| Remote Management | Each node (1 of 8): IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Chassis | |
|---|---|
| Cooling System | 3x 4cm 20k RPM middle fans per node |
| Form Factor | 4U Rackmount |
| Dimensions | 448 x 177 x 737mm (17.63” x 6.96” x 29”) |
| Storage | |
|---|---|
| Onboard Storage Controller | Each node (1 of 8): Intel® C621 SATA3 (6 Gbps) controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | Each node (1 of 8): 6 x 2.5” Hot-swap SATA3 or 4 x 2.5” Hot-swap SATA3 & 2 x Hot-swap NMVe U.2 |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | Each node (1 of 8): 1 PCI-E 4.0 x16 LP 1 PCI-E 4.0 x16 (SIOM) |
| Power | |
|---|---|
| Power Supply | 4 x 2200W Redundant Titanium Level (96%+) high-efficiency power supplies with I2C & PMBus |

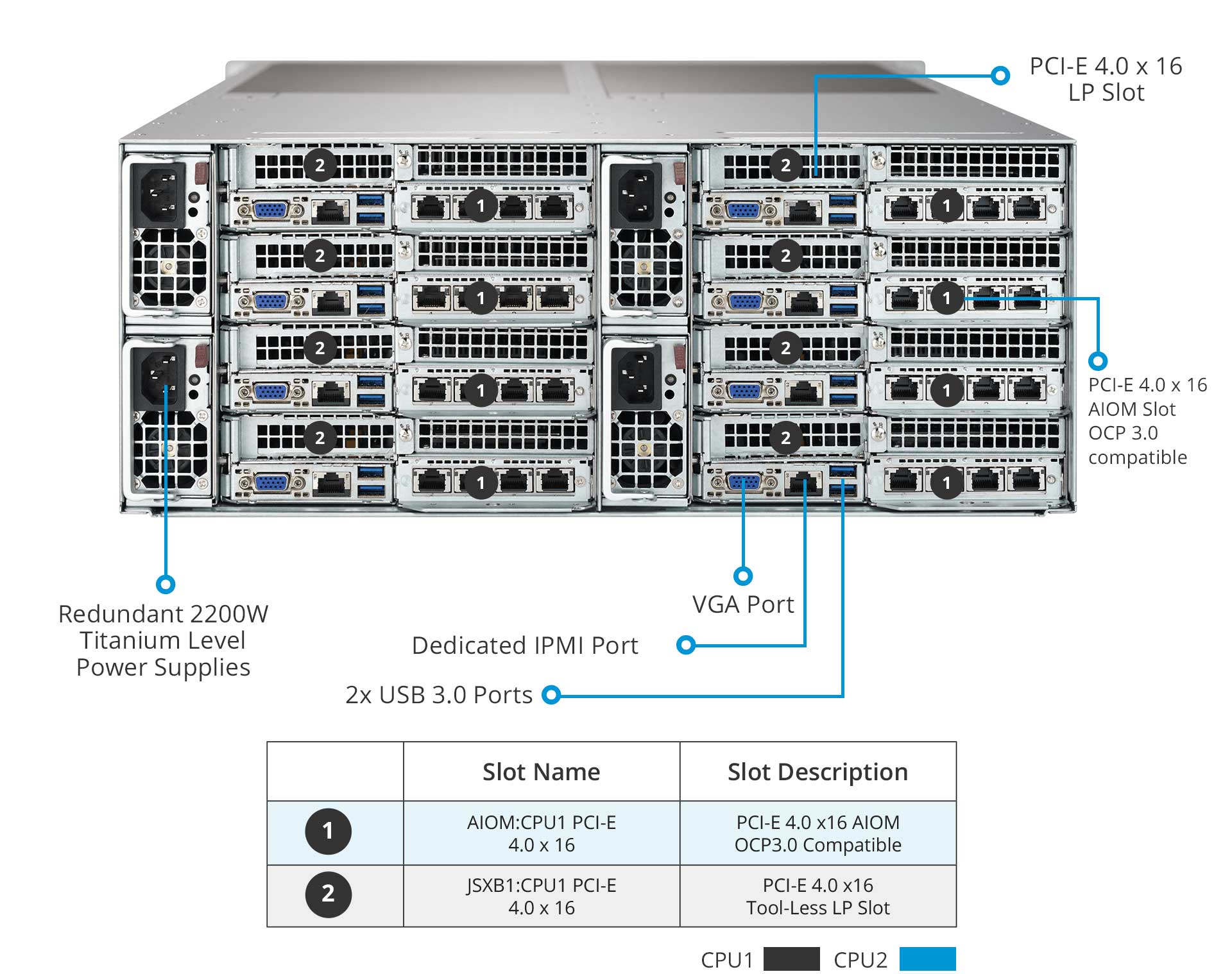

I/O Layout
