2U 4-Node Single AMD EPYC Processor
Use Cases
- Compute Intensive Application
- Data Center
- Enterprise Server
- HPC
- HyperScale/Hyperconverged
Highlights
- 8 DIMM Slots – Up to 2TB Memory per Node
- 6 x 2.5″ Hot-swap NVMe/SATA drive bays Per Node
- 2 Low-profile PCI-E 4.0
Specs
| Motherboard | |
|---|---|
| Processor Support | Each node (1 of 4): Single AMD EPYC™ 7003/7002 (Milan/Rome) Series Processor |
| Chipset | AMD 2nd Gen EPYC™ System on Chip (SoC) |
| System Memory (Max.)* | Each node (1 of 4): Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots |
| Networking | Dual 1GbE i350-AM2 |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | Each node (1 of 4): Aspeed AST2500 BMC |
| Remote Management | Each node (1 of 4): IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions (mm) | 440 x 87.5 x 695 |
| Storage | |
|---|---|
| Onboard Storage Controller | Each node (1 of 4): SATA3 (6Gbps) via AMD EPYC |
| RAID Controller Options | Optional SAS HBA Available |
| Drive Bays | Each node (1 of 4): 3 x 3.5” Hot-swap SATA3/SAS3 drive bays |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | Each node (1 of 4): 2 PCI-E 4.0 LP x16 1 PCI-E 3.0 x16 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 2000W Redundant high-efficiency power supplies with I2C & PMBus |

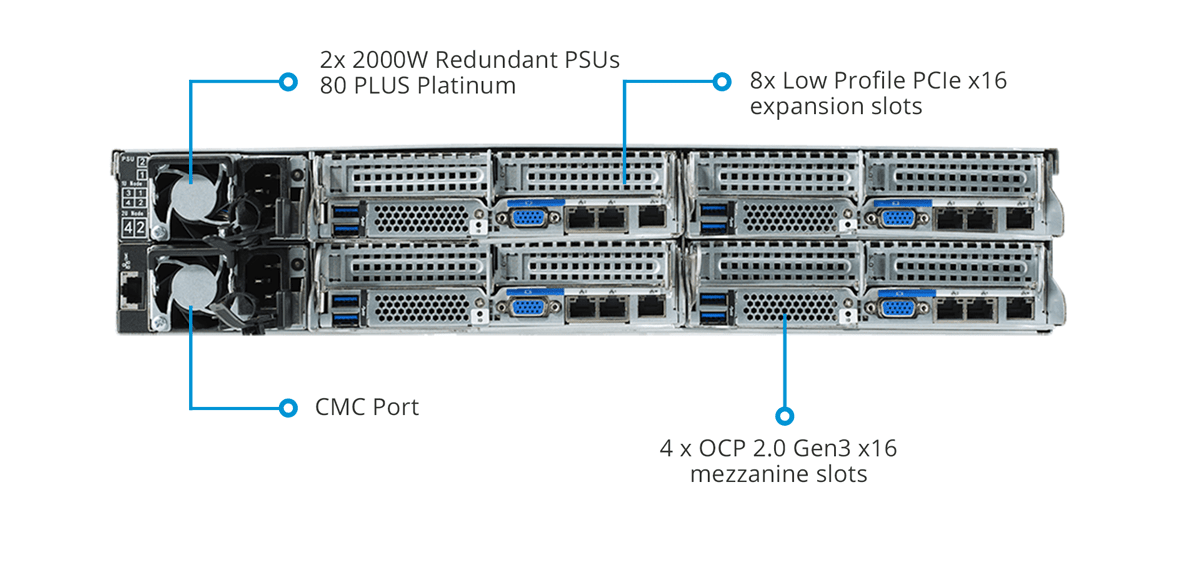

I/O Layout
