4U GPU-Optimized Dual AMD EPYC Processors
Use Cases
- AI / Deep Learning
- 2D/3D and CAD Applications
- 3D Rendering
- Astrophysics
- Chemistry
Highlights
- 2000W Platinum Level Digital Power Supply
- GPU health monitoring with fan speed control
- 9 PCI-E 4.0 x16 Slots (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
- NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
Specs
| Motherboard | |
|---|---|
| Processor Support | Single AMD EPYC™ 7003/7002 (Milan/Rome) Series Processor |
| Chipset | AMD 2nd Gen EPYC™ System on Chip (SoC) |
| System Memory (Max.)* | Up to 8TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMM slots |
| Networking | Dual 1GbE LAN ports |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | ASPEED AST2500 BMC |
| Remote Management | IPMI2.0; KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5. Watchdog |
| Chassis | |
|---|---|
| Cooling System | 8 x 11.5K RPM heavy duty fans |
| Form Factor | 4U Rackmount |
| Dimensions | 437 x 178 x 737mm (17.2” x 17" x 29") |
| Storage | |
|---|---|
| Onboard Storage Controller | NVMe or SATA3 (6 Gbps) controller - SAS3(Optional) |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 24 x Hot-swap 2.5" drive bays - 4 x U.2 NVMe drive bays or 24 x SATA3/SAS3 (via optional SAS kit) |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 9 PCI-E 4.0 x16 FHFL or 10 PCI-E 4.0 x16 FHFL without NVMe devices |
| Power | |
|---|---|
| Power Supply | 2 x 2 2000W Redundant Power Supplies Titanium Level (96%) |

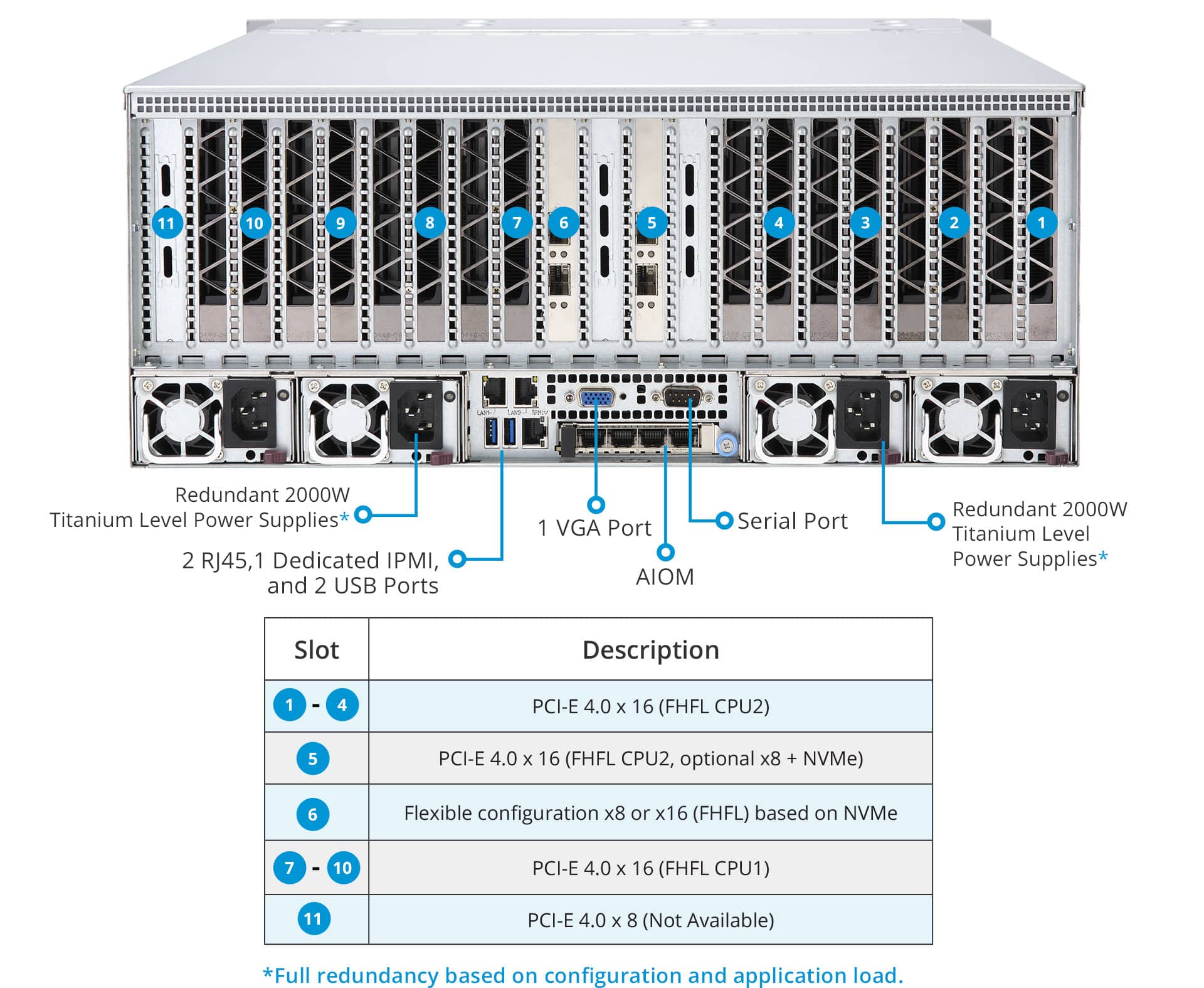

I/O Layout
